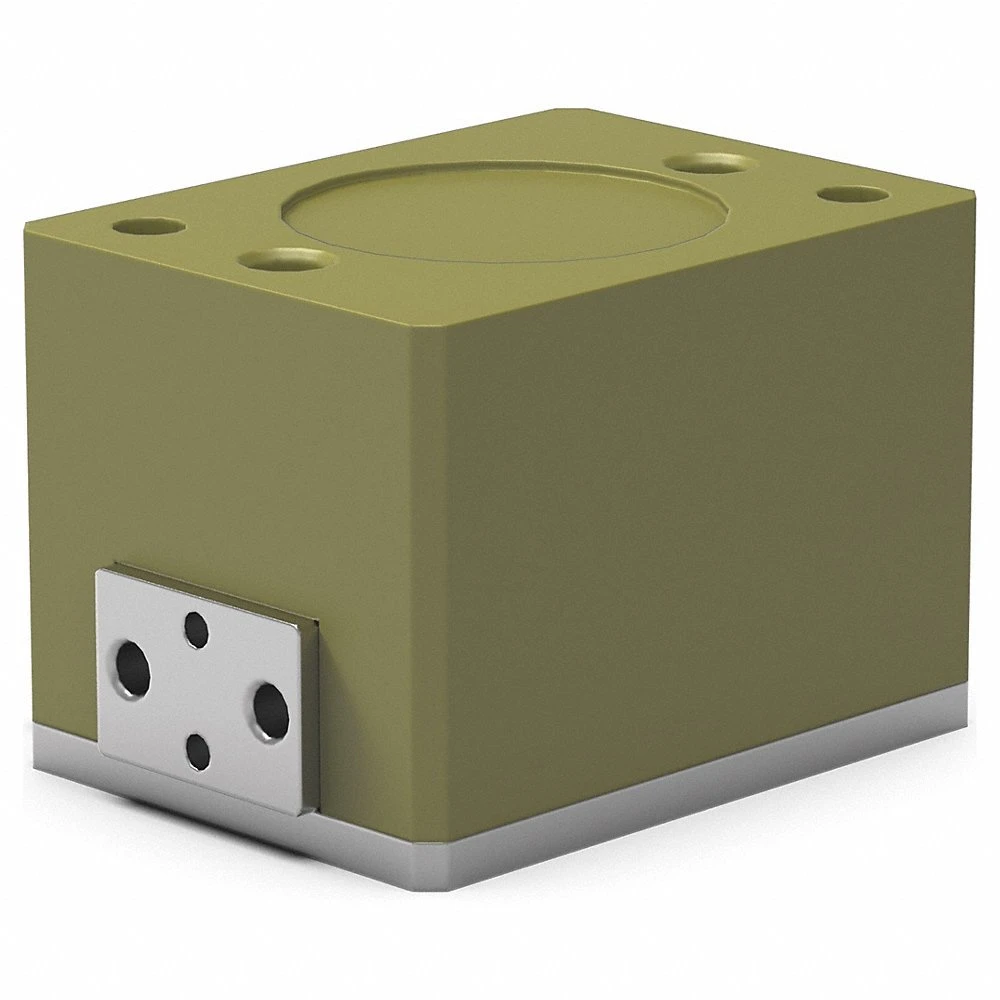

DESTACO RP-12 Parallel Gripper, Parallel, 2.5 Inch Open Width, 2.13 Inch Closed Width, Double
Get it by Tuesday, Jun 17
€869.79 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Gripper |
| Action Type | Double |
| Bore Size | 1" |
| Closed Width | 2.13" |
| Dimension A | 2 1/2" |
| Dimension B | 2.13" |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Height | 1.402" |
| Length | 2" |
| Max. Pressure | 100 psi |
| Mfr. Series | RP Series |
| Opening Width | 2 1/2" |
| Opening/closing Stroke | 0.38" |
| Operating Temp. Range | -30°F to +180°F |
| Port Size | M5 |
| Seal Material | Buna N |
| Size | 12 |
| Total Grip Force | 40 lbf. |
| Type | Parallel |
| Body Material | Aluminum |
| Finger Material | Carbon Steel |
| Maximum Operating Pressure | 100 psi |
| Maximum Operating Temperature | 180°F |
| Minimum Operating Pressure | 40 psi |
| Minimum Operating Temperature | -30°F |
| Open Width | 2 1/2" |
| Overall Height | 1 3/8" |
| Overall Length | 1 1/2" |
| Overall Width | 2 1/8" |
| Series | RP Series |
| Stroke Length | 3/8" |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 3.49 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 5.4 |
| Country of Origin | US |
