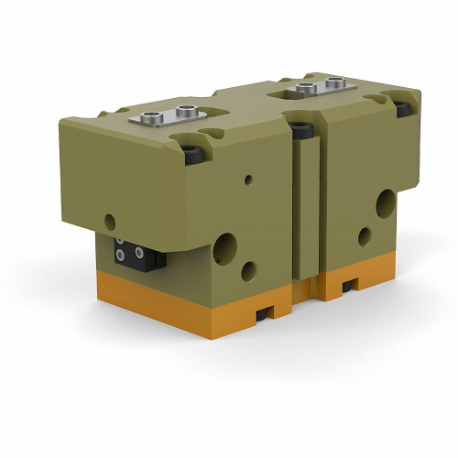

DESTACO RDH-5M Heavy Duty Gripper, Parallel, Double, M5 x 6 Port Size, RDH, 5M, 69.1 mm Bore Size, Buna-N
Get it by Tuesday, Jun 17
€956.48 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Gripper |
| Action Type | Double |
| Bore Size | 69.1 mm |
| Dimension A | 24.5 mm |
| Dimension B | 30.5 mm |
| Extended Stroke | No |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Height | 162 mm |
| Length | 2.992" |
| Max. Pressure | 100 psi |
| Mfr. Series | RDH Series |
| Opening/closing Stroke | 13 mm |
| Operating Temp. Range | -35°C to +80°C |
| Port Size | M5 x 6 |
| Seal Material | Buna N |
| Size | 5m |
| Total Grip Force | 3593N |
| Type | Parallel |
| Width | 3.465" |
| Air Inlet Type | G |
| Body Material | Aluminum |
| Finger Material | Carbon Steel |
| Maximum Operating Pressure | 100 psi |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Pressure | 29 psi |
| Minimum Operating Temperature | -35°C |
| Open Width | 162 mm |
| Overall Height | 162 mm |
| Overall Length | 76 mm |
| Overall Width | 162 mm |
| Series | RDH Series |
| Stroke Length | 13 mm |
| Ship weight (kg) | 3.87 |
| Ship height (cm) | 16.2 |
| Ship length (cm) | 7.6 |
| Ship width (cm) | 16.2 |
| Country of Origin | FR |
