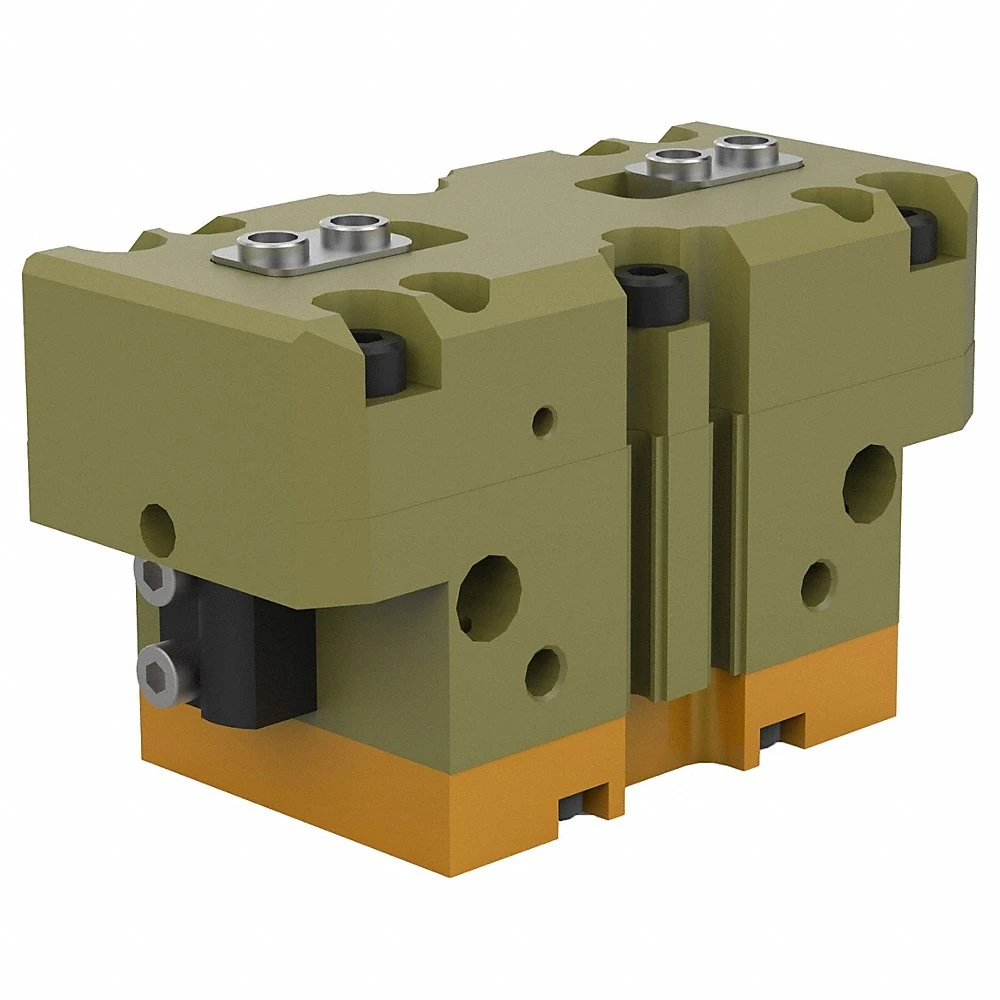

| Item | Gripper |
| Action Type | Double |
| Bore Size | 41.9 mm |
| Dimension A | 16 mm |
| Dimension B | 20.5 mm |
| Extended Stroke | No |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Height | 104 mm |
| Max. Pressure | 100 psi |
| Mfr. Series | RDH Series |
| Opening/closing Stroke | 8 mm |
| Operating Temp. Range | -35°C to +80°C |
| Port Size | M4 x 5 |
| Seal Material | Buna N |
| Size | 3m |
| Total Grip Force | 1317N |
| Type | Parallel |
| Body Material | Aluminum |
| Finger Material | Carbon Steel |
| Maximum Operating Pressure | 100 psi |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Pressure | 29 psi |
| Minimum Operating Temperature | -35°C |
| Open Width | 104 mm |
| Overall Height | 104 mm |
| Overall Length | 50 mm |
| Overall Width | 104 mm |
| Series | RDH Series |
| Stroke Length | 8 mm |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 10.4 |
| Ship length (cm) | 5 |
| Ship width (cm) | 10.4 |
| Country of Origin | FR |
