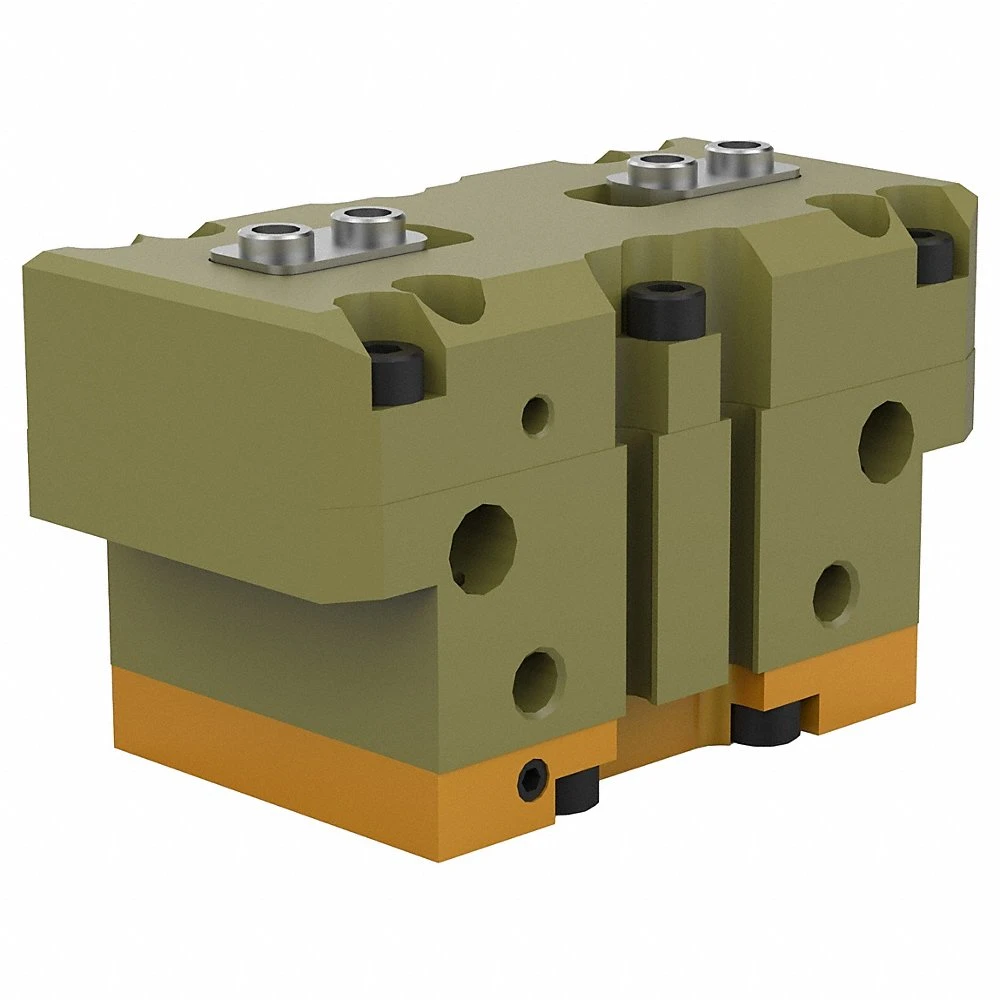

DESTACO RDH-1M-L Parallel Jaw Gripper, Parallel, Double, M3 x 3 Port Size, RDH, 1M, 27.2 mm Bore Size
Get it by Tuesday, Jun 17
€811.06 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Gripper |
| Action Type | Double |
| Bore Size | 27.2 mm |
| Dimension A | 7 mm |
| Dimension B | 10 mm |
| Extended Stroke | Yes |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Height | 63 mm |
| Max. Pressure | 100 psi |
| Mfr. Series | RDH Series |
| Opening/closing Stroke | 8 mm |
| Operating Temp. Range | -35°C to +80°C |
| Port Size | M3 x 3 |
| Seal Material | Buna N |
| Size | 1m |
| Total Grip Force | 361N |
| Type | Parallel |
| Body Material | Aluminum |
| Finger Material | Carbon Steel |
| Maximum Operating Pressure | 100 psi |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Pressure | 29 psi |
| Minimum Operating Temperature | -35°C |
| Open Width | 63 mm |
| Overall Height | 63 mm |
| Overall Length | 33 mm |
| Overall Width | 63 mm |
| Series | RDH Series |
| Stroke Length | 8 mm |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 6.3 |
| Ship length (cm) | 3.3 |
| Ship width (cm) | 6.3 |
| Country of Origin | FR |
