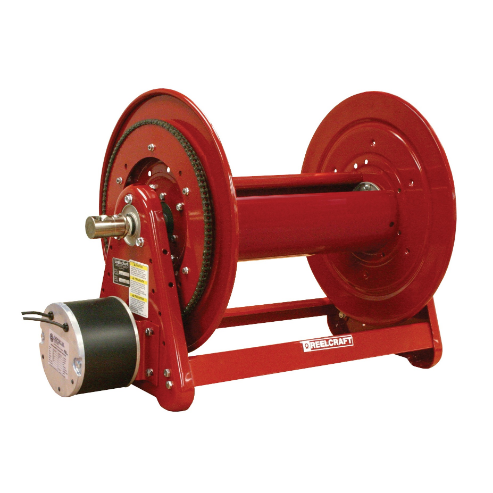

REELCRAFT EA32118 L12D Motor Driven Hose Reel, 12 VDC, Inner Diameter 1/2 Inch, Hose Length 325 Feet
Get it by Tuesday, Jun 17
€915.63 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hand Crank Hose Reel |
| Reel Color | Red |
| Base Motion Type | Stationary |
| Bearing Construction | Permanently Lubricated |
| Drive Type | Motor Driven |
| Enclosed | No |
| Features | Heavy Duty, Bolted Construction |
| For Dual Hose | No |
| Hazardous Location | No |
| Horsepower | 1/3 hp |
| Hose Capacity | 325 ft. (1/2" I.D.) |
| Hose Reel Primary Application | Air, Fire Hose, Garden Hoses, Hydraulic Oil, Nitrogen, Oil, Washdown, Water |
| Hose Reel Type | Floor, Vehicle Mount Hose Reel, Wall Mount Hose Reel |
| Includes Gooseneck | Yes |
| Includes Hose | No |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Maximum Operating Pressure | 1000 psi |
| Maximum Operating Temperature | 210°F |
| Minimum Operating Pressure | 0 psi |
| Minimum Operating Temperature | -40°F |
| Motor Type | Magnetic |
| Motor Voltage | 12V DC |
| Mount Base Height | 12 5/8" |
| Mount Base Width | 23" |
| Mounting Hole Center To Center Height | 9" |
| Mounting Hole Center To Center Width | 21 3/4" |
| Overall Dimensions | 17 3/4" L x 29 5/8" W x 20 1/4" H |
| Overall Height | 20 1/4" |
| Overall Length | 17 3/4" |
| Overall Width | 29 5/8" |
| Reel Color | Red |
| Reel Diameter | 6 3/8" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 18" |
| Seal Material | Nitrile |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Iron |
| Swivel Outlet Gender | Female |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Weight | 68 lbs. |
| Ship weight (kg) | 30.6 |
| Ship height (cm) | 56.52 |
| Ship length (cm) | 85.73 |
| Ship width (cm) | 45.72 |
,Reelcraft Series 30000 hose reels are designed for rugged applications requiring long lengths of hose and large storage capacity. The all-bolted unitized construction with no welds to fatigue, full flow swivel, and heavy gauge steel frame, spool, and drum ensure the longest service life. The Series 30000 vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control., , ,Hose replacement made easy – the gooseneck can easily be removed to simplify adding long lengths of hose to the reel., ,Quality finish and corrosion resistant – Individually powder-coated components offer maximum protection from premature corrosion., ,Motor options – Multiple motor options provide an easy method to rewind long lengths of hose., ,The model is supplied with a 12 V DC motor., ,Made in the USA, ,
| Product | Model | Drive Type | Finish | Height | Hose Ends | Hose I.d. | Hose Inside Dia. | Hose Length | Hose Outside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CA32122 L1 | Hand Crank | Powder Coated | 20.25" | - | N | 1/2" | 400ft. | - | - | RFQ
|
 |
EA33128 L12D1 | Motor | Powder Coated | 17.75" | 3/4" (F)NPT | N | 3/4" | 275ft. | - | €1,472.56 | |
 |
CA38106 M 1 | Hand Crank | Powder Coated | 20.25" | 1/2" (M)NPT | N | 3/8" | 140ft. | - | €410.60 | |
 |
CA32128 L1 | Hand Crank | Powder Coated | 20.25" | - | N | 1/2" | 500ft. | - | - | RFQ
|
 |
CA38112 M1 | Hand Crank | Powder Coated | 20.25" | 1/2" (M)NPT | N | 3/8" | 300ft. | - | €410.60 | |
 |
CA32112 M1 | Hand Crank | Durable Powder Coat | 20.25" | - | N | 1/2" | 200ft. | - | €357.76 | |
|
EA32118 M12D1 | Motor | Powder Coated | 20.25" | - | N | 1/2" | 325ft. | - | €915.63 |
