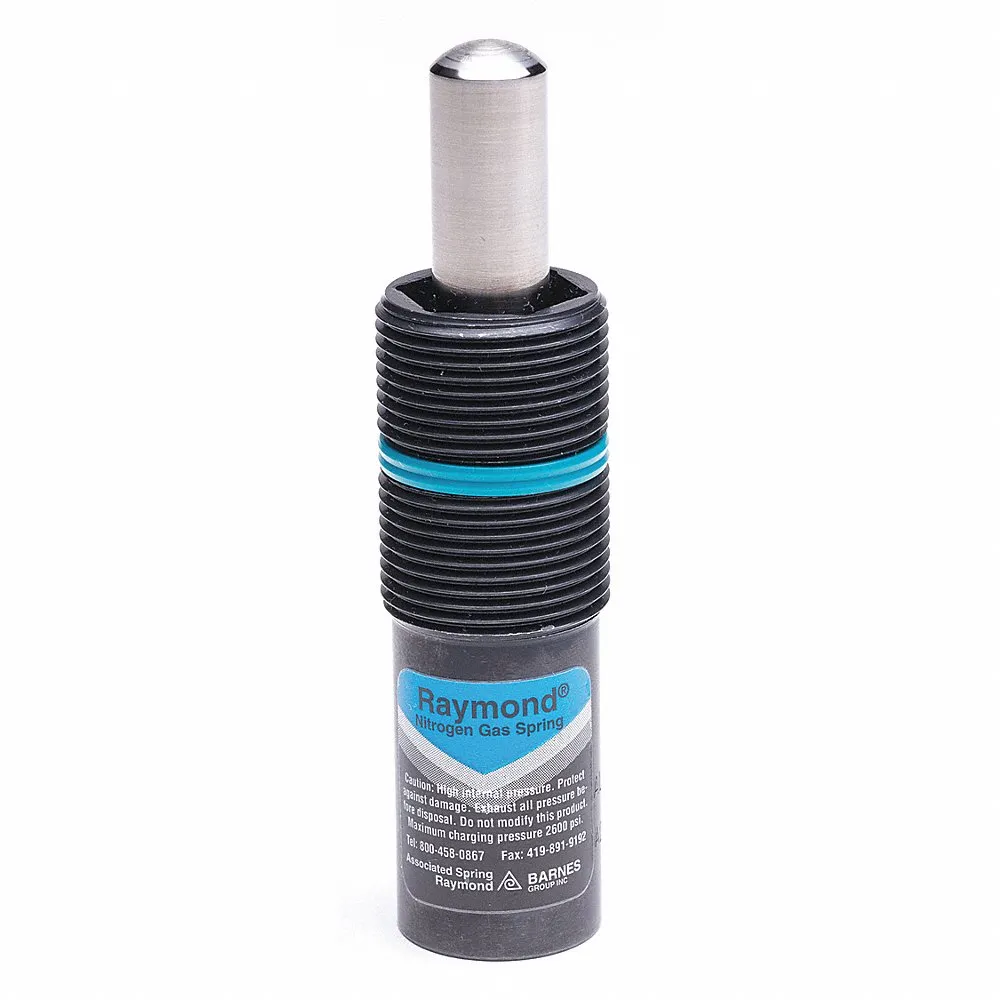

ASSOCIATED SPRING RAYMOND EP2 24-080-RE Gas Spring, Heavy Duty Nitrogen, Carbon Steel, M24X1.5 Rod Thread Size
Get it by Monday, Jun 16
€253.00 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Gas Spring |
| Adjustable Resistance | No |
| Color | Red |
| Compressed Length | 4.93" |
| Cylinder Dia. | 0.93" |
| Extended Length | 8.07" |
| Fitting Type | None |
| Fixed Resistance | No |
| Force | 191 lbs. |
| Locking | No |
| Material | Carbon Steel |
| Rod Thread Size | M24 x 1.5 |
| Stroke | 3.37" |
| Type | Heavy Duty Nitrogen |
| Cylinder Diameter | 24 mm |
| Cylinder Material | Steel |
| End Fittings Type | End Fittings Not Included |
| Finish | Black Oxide |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | 32°F |
| Rod Diameter | 12 mm |
| Standards | PED APPROVED |
| Stroke Length | 3 1/8" |
| Thread Size | M24 x 1.5 |
| Ship weight (kg) | 57.2 |
| Model | Color | Compressed Length | Extended Length | Force | Stroke | Price | |
|---|---|---|---|---|---|---|---|
| EP2 24-100-BL | Blue | 5 17/25" | 9.65" | 101 lbs. | 3.93" | €247.93 | |
| EP2 24-050-BK | Black | 3 3/4" | 5 17/25" | 52 lbs. to 382 lbs. | 2" | €222.00 | |
| EP2 24-125-BL | Blue | 6 17/25" | 11.61" | 101 lbs. | 4.93" | €251.89 | |
| EP2 24-030-GR | Green | 2.93" | 4 3/25" | 52 lbs. | 1.18" | €214.78 | |
| EP2 24-080-BL | Blue | 4.93" | 8.07" | 101 lbs. | 3.37" | €253.00 | |
| EP2 24-060-BL | Blue | 4 3/25" | 6 1/2" | 101 lbs. | 2.37" | €230.77 | |
| EP2 24-070-GR | Green | 4 1/2" | 7 7/25" | 52 lbs. | 2 3/4" | €236.61 |
