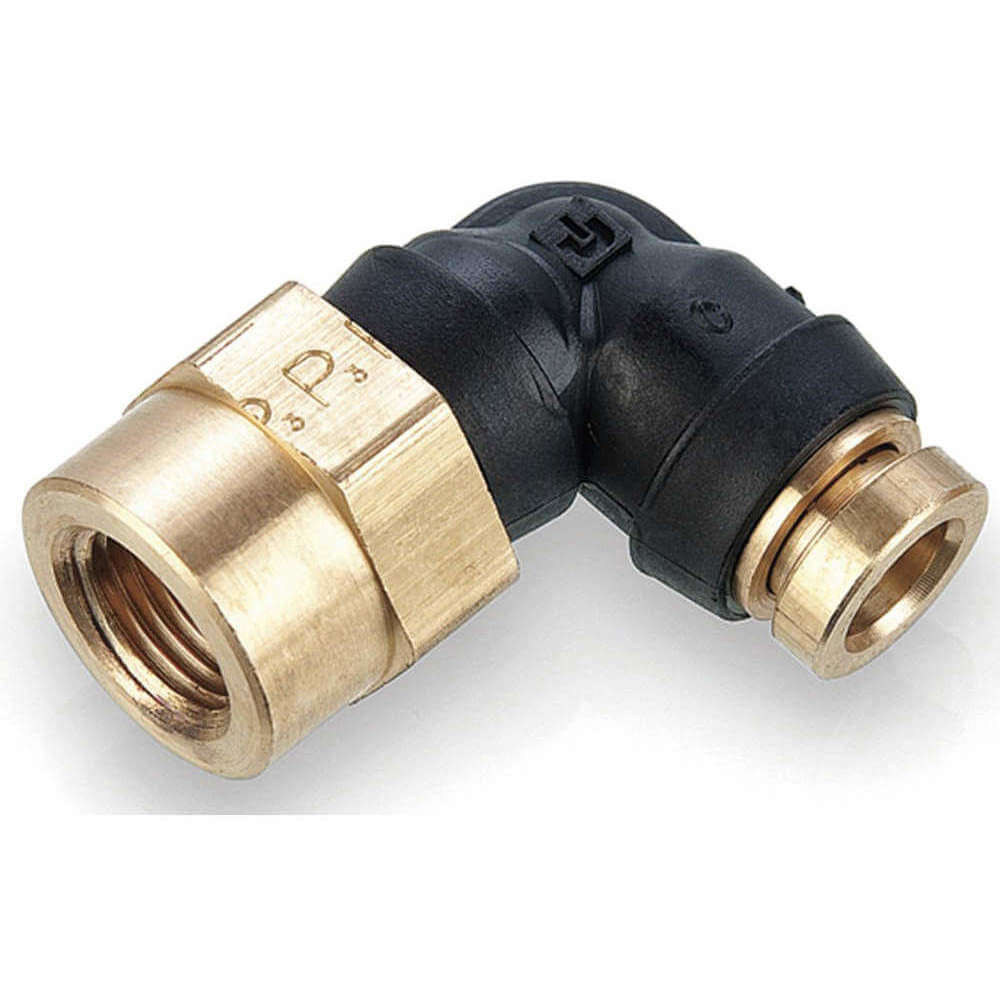

| Item | Female Elbow, 90 Degrees |
| Hex Size | 5/8" |
| Length | 0.69" |
| Pressure Rating | 250 psi |
| Temp. Range | -40°F to +200°F |
| Thread Size | 1/8" |
| Tube Size | 1/4" |
| Type | Dot Fitting |
| Application | Air |
| Color | Black |
| Compatible Tube Material | Nylon, Stainless Steel |
| Fitting Material | Composite |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | FNPTF |
| Fitting Side B Pipe Size | 1/8" |
| Fitting Thread Size | 1/8" |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | -40°F |
| Overall Length | 11/16" |
| Resistance Properties | Impact Resistant |
| Specific Fitting Shape | 90° Elbow Adapter |
| Standards | DOT FMVSS 571.106, SAE J1131, SAE J2494-3 |
| System Of Measurement | Imperial |
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 1.59 |
| Ship length (cm) | 1.75 |
| Ship width (cm) | 11.18 |
| HS code | 7412200035 |
| Country of Origin | US |
| Product | Model | Hex Size | Length | Thread Size | Tube Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
|
370PTC-6-6 | 13/16" | 0.99" | 3/8" | 3/8" | 10 | - | RFQ
|
