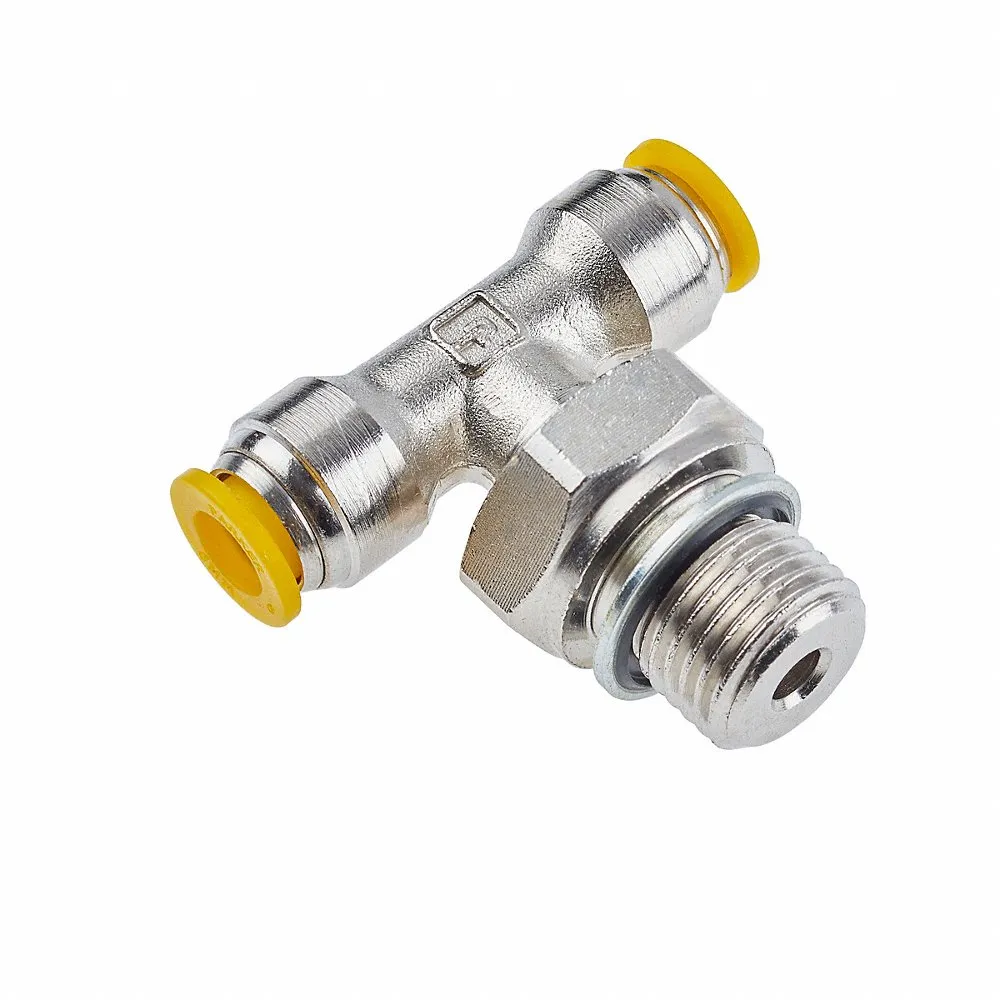

PARKER 172PLP-4M-2G Metric Metal Push-to-Connect Fitting, Nickel Plated Brass
€23.28 /unit
Request a Quote
Payment
Payment
| Item | Fitting |
| Application | Air, Inert Gases, Oils, Vacuum |
| Color | Silver |
| Compatible Tube Hardness | 90 Shore A, 95 Shore A |
| Compatible Tube Material | Plasticized Nylon, Polyethylene, Polypropylene, Polyurethane, Unplasticized Nylon |
| Finish, Coating | Nickel Plated |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 4 mm |
| Fitting Side C Connection Type | BSPP |
| Fitting Side C Pipe Size | 1/8" |
| Length | 15.5 mm |
| Material | Brass |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | 0°F |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Corrosion Resistant |
| Specific Fitting Shape | TEE |
| Sub-brand | Prestolok |
| System Of Measurement | Metric |
| Thread Size | 1/8" |
| Finish/coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Thread Size | 1/8" |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 0°F |
| Overall Length | 15.5 mm |
| Ship weight (kg) | 0.03 |
| Ship length (cm) | 1.55 |
| Country of Origin | US |
