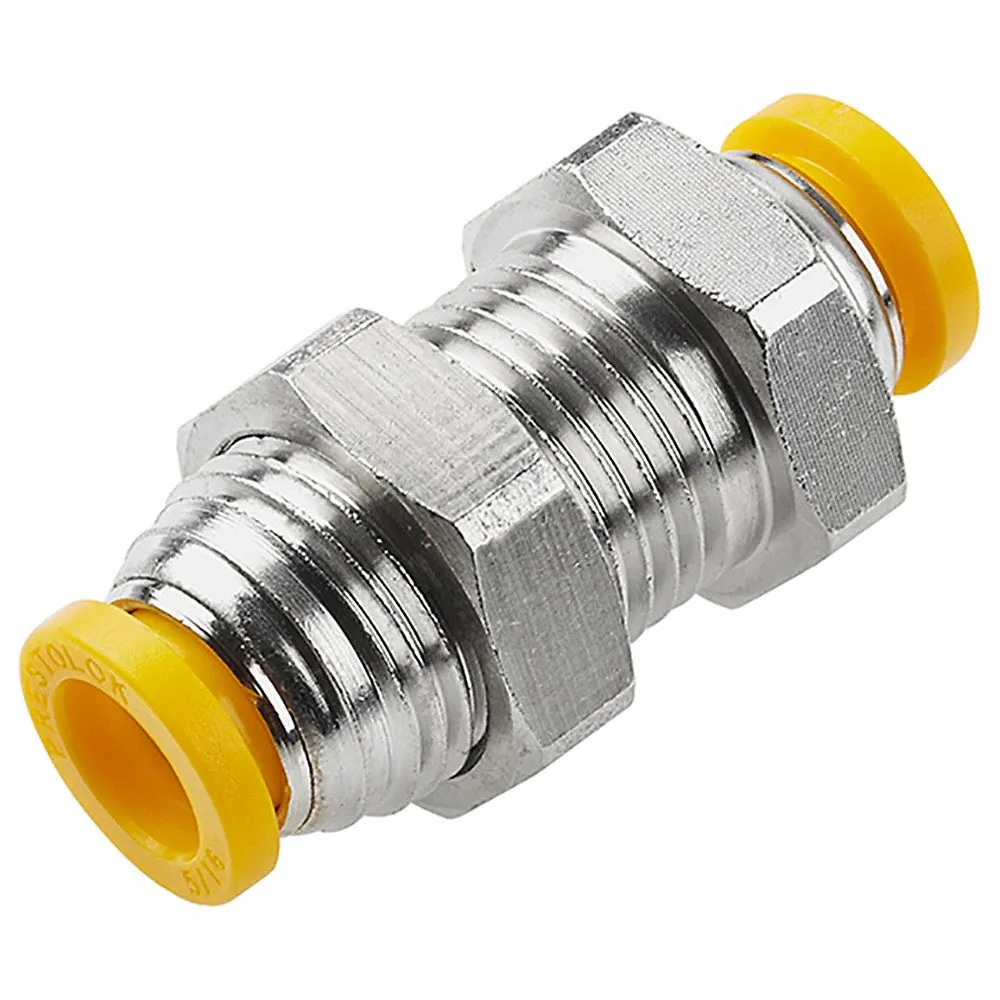

PARKER 62PLPBH-12M Metric Metal Push-to-Connect Fitting, Nickel Plated Brass
€37.47 /unit
Request a Quote
Payment
Payment
| Item | Fitting |
| Application | Air, Cooling |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Nylon N, Nylon NR, Polyethylene, Polyethylene HDPE, Polyethylene PEFR, Polypropylene, Polypropylene Block Copolymer, Polyurethane |
| Finish, Coating | Nickel Plated |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 12 mm |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 12 mm |
| Length | 50.938 mm |
| Material | Brass |
| Max. Operating Pressure | 300 psi |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | 0°F |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Corrsion Resistant, Mechanical Resistant |
| Specific Fitting Shape | Bulkhead Union |
| Sub-brand | Prestolok |
| System Of Measurement | Metric |
| Finish/coating | Nickel Plated |
| Fitting Material | Brass |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 0°F |
| Overall Length | 50.9375 mm |
| Standards | FDA, ROHS |
| Ship weight (kg) | 0.09 |
| Ship length (cm) | 5.09 |
| Country of Origin | US |
