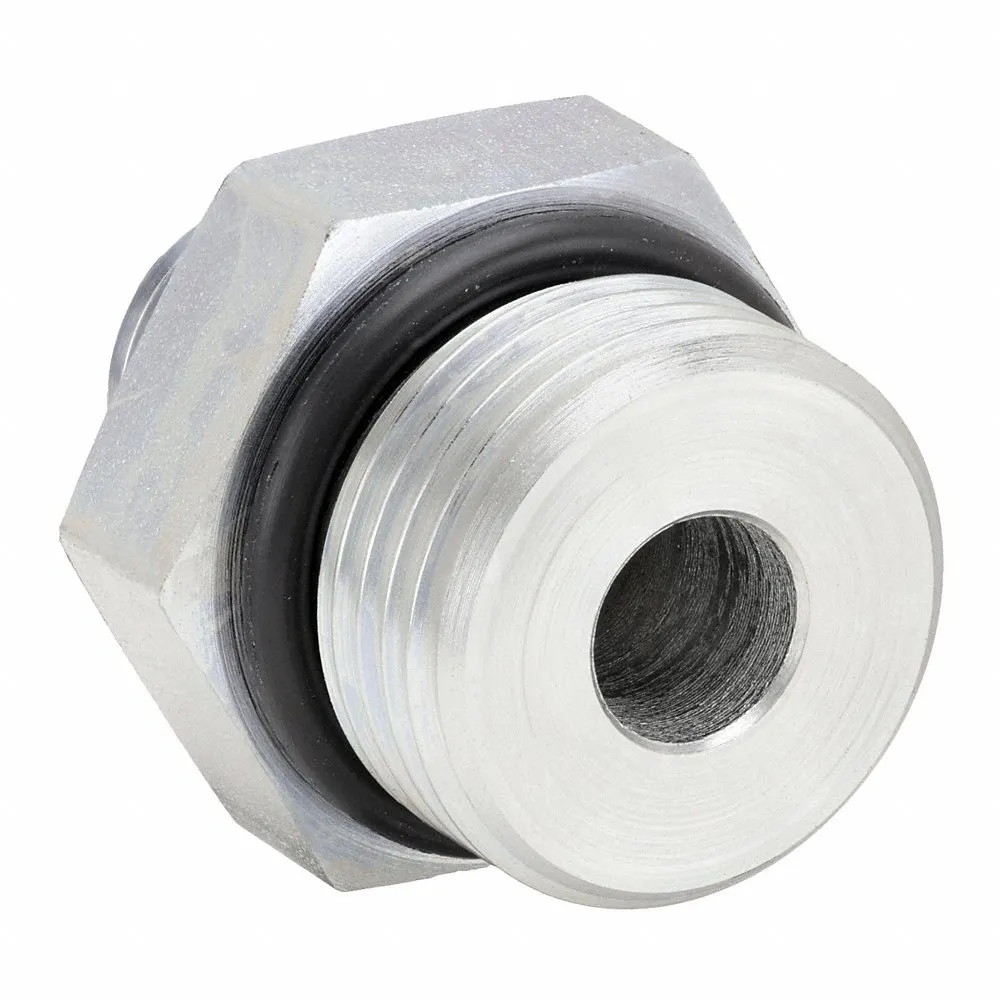

| Item | Reducing Adapter |
| Application | Hydraulic Fluid |
| Basic Fitting Shape | Adapter |
| Finish/coating | Zinc Plated |
| Fitting Material | Steel |
| Fitting Side A Gender | Male |
| Fitting Side A Nominal Pipe Size | 1" |
| Fitting Side A Thread Class | Class 2A |
| Fitting Side A Type | Fine |
| Fitting Side B Gender | Male |
| Fitting Side B Nominal Pipe Size | 3/4" |
| Fitting Side B Type | NPTF |
| Hex Size | 1 1/2" |
| Includes Seal | Yes |
| Max. Operating Pressure | 4500 psi |
| Overall Length | 1 3/4" |
| Seal Material | Nitrile |
| Specific Fitting Shape | Reducing Adapter |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 4500 psi |
| Pipe Fitting Material | Steel |
| Standards | ANSI B1.1, ANSI B1.20.3, FED-STD-H28/2, FED-STD-H28/8, ISO 11926, ISO 6149, SAE J1926, SAE J476 |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 4.45 |
| Ship width (cm) | 3.81 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
24-20 F5OG5-SS | €633.51 | |
 |
1 1/2 X 1 1/4 PTR-SS | €466.62 | |
|
1 1/2 X 1 PTR-SS | €449.25 | |
 |
24-16 F5OG5-SS | €619.77 | |
 |
1 1/2 X 1/2 PTR-SS | €558.93 | |
|
1 1/2 X 1/4 PTR-SS | €407.14 | |
|
1 1/2 X 3/4 PTR-SS | €432.96 |
