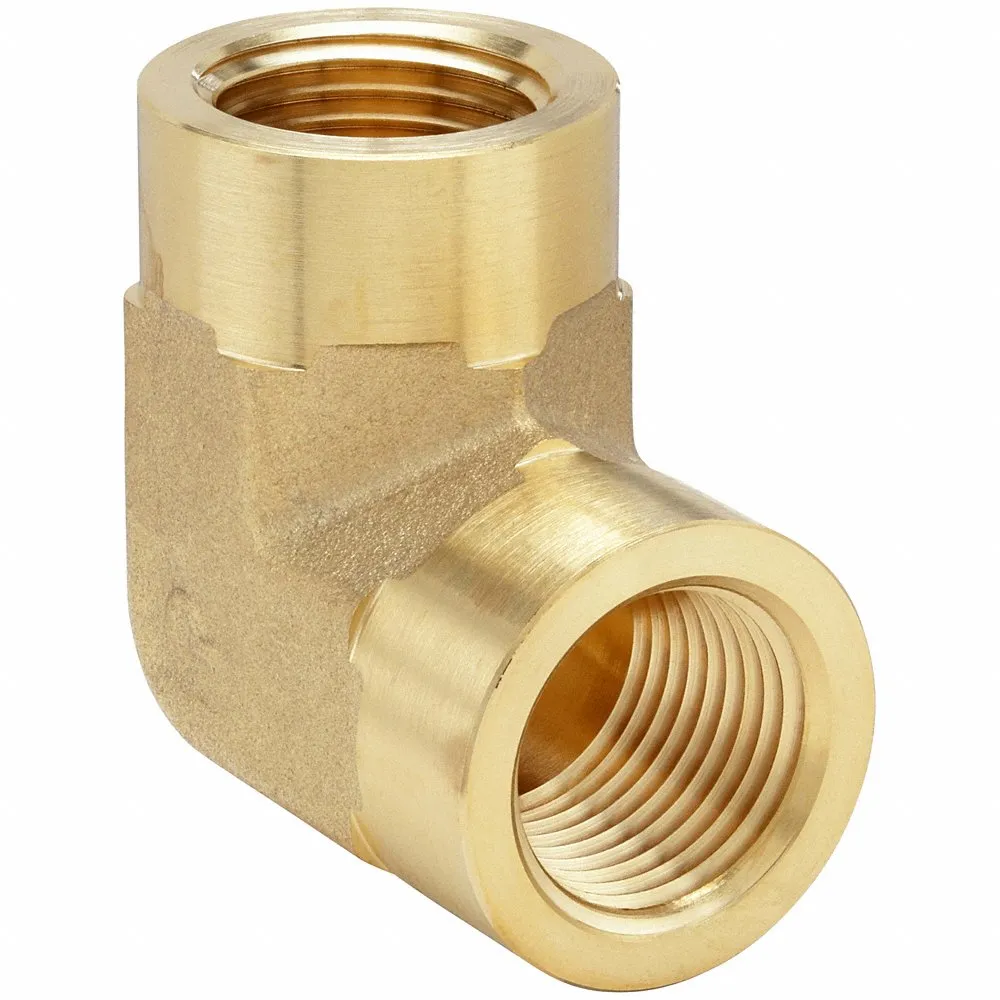

PARKER 1/8 DD-B 90 Deg. Elbow, Brass, 1/8 Inch X 1/8 Inch Pipe, Female Npt X Female Nptf
€25.13 /unit
Request a Quote
Payment
Payment
| Item | 90 Degree Elbow |
| Application | Hydraulic Fluid |
| Basic Fitting Shape | Elbow |
| Color | Brown |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 1/8" |
| Fitting Side A Type | NPT |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 1/8" |
| Fitting Side B Type | NPTF |
| Grade | Grade CA377 |
| Hex Size | 0.562" |
| Includes Seal | No |
| Material | Brass |
| Max. Operating Pressure | 3200 psi |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | 90° Elbow |
| Includes Pre-applied Thread Sealant | No |
| Material Grade | CA377 |
| Maximum Operating Pressure | 3200 psi |
| Pipe Fitting Material | Brass |
| Standards | ANSI B1.20.1, ANSI B1.20.3, FED-STD-H28/7, FED-STD-H28/8, SAE J476 |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.43 |
| Country of Origin | US |
| Model | Body Material | Connection Type | Item | Max. Pressure | Pipe Size | Temp. Range | Tube Size | Price | |
|---|---|---|---|---|---|---|---|---|---|
| GAME-1212 | PFA, PTFE, ETFE | Compression | Elbow, 90 Degrees | 150 psi | 3/4" | 32 Degrees to 266 Degrees F | 3/4" | €227.40 | |
| GAME-24 | PFA, PTFE, ETFE | Compression | Elbow, 90 Degrees | 225 psi | 1/4" | 32 Degrees to 266 Degrees F | 1/8" | €121.93 | |
| GAME-42 | PFA, PTFE, ETFE | Compression | Elbow, 90 Degrees | 225 psi | 1/8" | 32 Degrees to 266 Degrees F | 1/4" | €128.21 | |
| GAME-44 | PFA, PTFE, ETFE | Compression | Elbow, 90 Degrees | 225 psi | 1/4" | 32 Degrees to 266 Degrees F | 1/4" | €120.37 | |
| GAME-46 | PFA, PTFE, ETFE | Compression | Elbow, 90 Degrees | 225 psi | 3/8" | 32 Degrees to 266 Degrees F | 1/4" | €131.83 | |
| GAME-48 | PFA, PTFE, ETFE | Compression | Elbow, 90 Degrees | 175 psi | 1/2" | 32 Degrees to 266 Degrees F | 1/4" | €133.72 | |
| GAME-64 | PFA, PTFE, ETFE | Compression | Elbow, 90 Degrees | 225 psi | 1/4" | 32 Degrees to 266 Degrees F | 3/8" | €118.93 |
