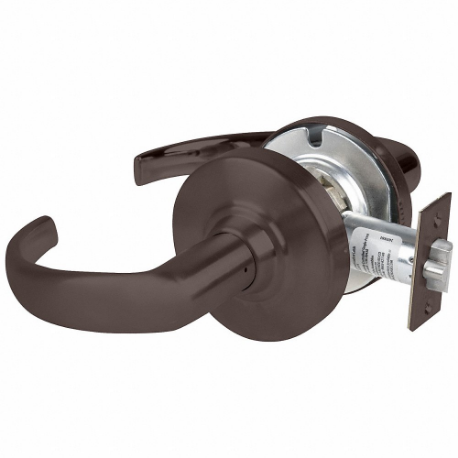

| Item | Door Lever Lockset |
| Ada Compliant | Yes |
| Backset | 2 3/4" |
| Cylinder Core Type | Conventional |
| Electrical/mechanical | Mechanical |
| Features | Both Levers Always Unlocked, Plain Lever Both Sides, Spring Latch |
| Finish | Oil Rubbed Bronze |
| Function | Passage Latch |
| Handle Material | Steel |
| Handle Type | Lever |
| Key Type | Non Keyed |
| Keyway Type | None |
| Ligature Resistant | No |
| Mortise / Cylindrical | Cylindrical |
| Number Of Keys | 0 |
| Pins | 6 |
| Required Door Thickness | 1 3/8 to 1 3/4" |
| Strike Dim. | 1.188" x 1.25" x 4.875" |
| Strike Type | Standard Strike |
| Style | Curved Return Lever |
| Visual Indicator Location | Inside, Outside |
| Ansi Grade | Grade 2 |
| Ansi Lockset Function | Passage |
| Bolt Type | Spring Latch |
| Door Thickness - Maximum | 1 3/4" |
| Door Thickness - Minimum | 1 3/8" |
| Fire Rating | 3 hrs. |
| General Lockset Function | Passage Lever Locksets |
| Hand Orientation | Non Handed |
| Inside Locking Access | Not Lockable |
| Knob/handle Material | Bronze |
| Ligature Resistance | Not Ligature Resistant |
| Lock Assembly Type | Cylindrical |
| Lockset Function Ansi Code | F75 |
| Lockset Handle Type | Lever |
| Lockset Style | ALX Sparta |
| Lockset Type | Mechanical |
| Number Of Pins | 6 |
| Outside Locking Access | Not Lockable |
| Performance Duty Rating | 2 |
| Properties | Corrosion Resistant |
| Standards | ANSI A156.2-2017, BAA/TAA, CALIFORNIA FIRE CODE, CAN/ULC S104, COMPLIES WITH ICC A117.1-2017 ACCESSIBLE AND USABLE BUILDINGS AND FACILITIES, FF-H-106C SERIES 161, FLORIDA BUILDING COMMISSION (ASTM E330, E1886, E1996), TDI (ASTM E330, E1886, E1996), UL 437 |
| Strike Plate Height | 4 7/8" |
| Strike Plate Lip Length | 1 3/16" |
| Strike Plate Width | 1 1/4" |
| Ul Fire Rating | UL10C |
| Visual Indicator Message | No Message |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
09-138 SL1 630 P | Antiligature Lever | €2,322.89 | |
 |
09-138 SL1 630 BD | Antiligature Lever | €2,123.48 | |
|
L9465P SL1 630 | Door Lever Lockset | €2,531.72 | |
|
L9080J SL1 630 | Door Lever Lockset | €2,408.55 | |
 |
L9010 SL1 630 | Door Lever Lockset | €2,217.32 | |
|
L9070J SL1 630 | Door Lever Lockset | €2,439.16 | |
|
L9465BD SL1 630 | Door Lever Lockset | €2,515.75 |
