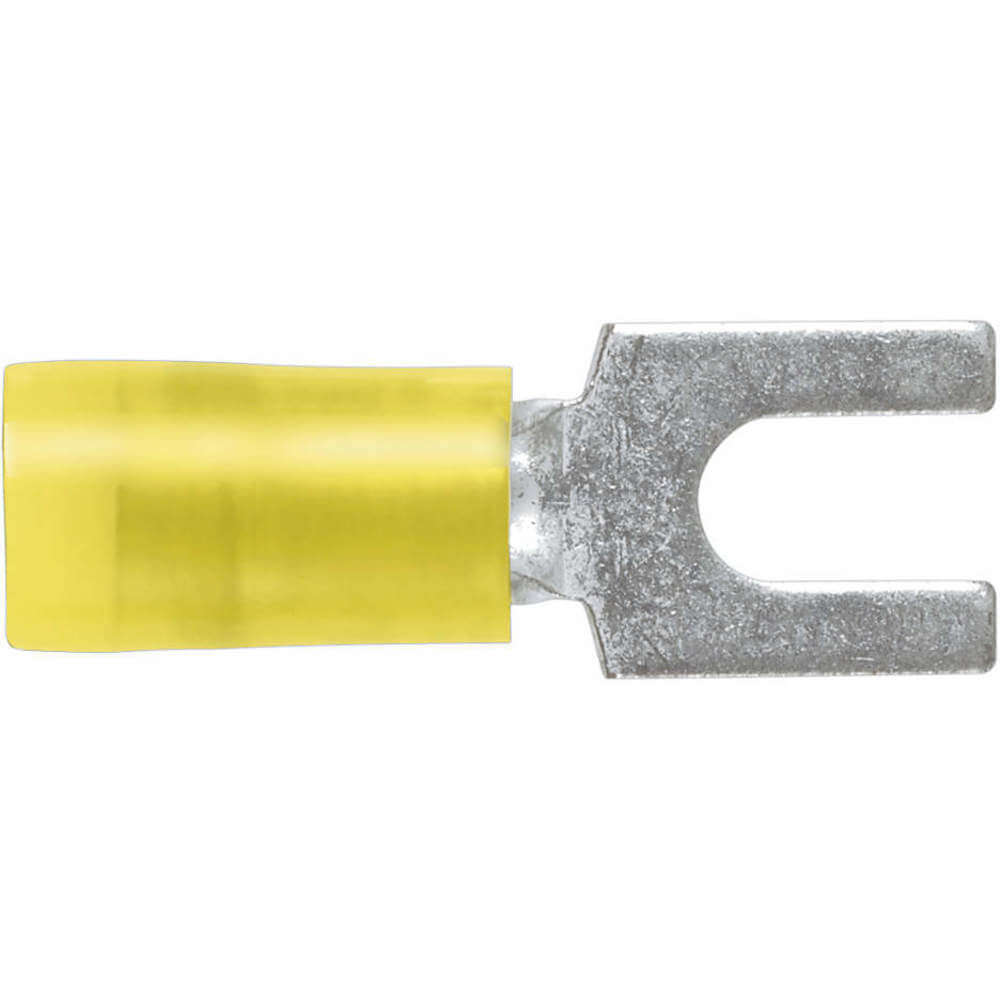

| Item | Fork Terminal |
| Base Material | Copper |
| Color Code | Yellow |
| Compatible With Product Type | Crimp Tool, Crimper, Micro Crimp Tool |
| Connection Material | Copper |
| Connection Type | Crimp |
| Fork Type | Standard |
| Insulation Color | Yellow |
| Insulation Dia | 0.225" |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Wire Size | 10 AWG |
| Min. Wire Size | 12 AWG |
| Overall Length | 1 1/25" |
| Seam | Grip Sleeved |
| Seam Style | Butted |
| Seam Type | Butted |
| Strip Length | 1/4" |
| Stud Size | #10 |
| Terminal Connection | Crimp |
| Terminal Shape | Standard Fork |
| Terminal Type | Standard |
| Termination Style | Crimp |
| Wire Size | 12 AWG to 10 AWG |
| Barrel Length | 0.52" |
| Barrel Style | Insulation Grip, Strain Relief |
| Compatible Grainger Part Number | 376T26, 376U11, 38YU61 |
| Compatible Manufacturer Model Number | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Compatible With Series | Series CT |
| Contact Finish | Tin |
| Contact Material | Copper |
| Flammability Rating | HB |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Minimum Wire Size | 12 AWG |
| Special Features | Fork Design Provides for Fast and Easy Installation Without the Need to Remove Fastener, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications |
| Standards | CSA CERTIFIED, UL LISTED |
| Termination | Crimp Termination Only |
| Tongue Length | 0.52" |
| Tongue Thickness | 0.04" |
| Tongue Width | 0.37" |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| Country of Origin | MX |
| Model | Insulation Type | Max. Temp. | Max. Voltage | Overall Length | Seam | Stud Size | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| P10-10F-L | Bare | 302 Degrees F | 2000V | 0.78" | Brazed | #10 | 12 to 10 AWG | 50 | €52.66 | |
| P14-10F-C | Bare | 302 Degrees F | 2000V | 0.71" | Brazed | #10 | 16 to 14 AWG | 100 | €74.91 | |
| P14-8F-C | Bare | 302 Degrees F | 2000V | 0.69" | Brazed | #8 | 18 to 14 AWG | 100 | €73.18 | |
| P14-8F-M | Bare | 302 Degrees F | 2000V | 0.69" | Brazed | #8 | 18 to 14 AWG | 1 | €290.14 | |
| PN10-14F-L | Nylon | 221 Degrees F | 600V | 1.14" | Grip Sleeved | 1/4" | 12 to 10 AWG | 50 | €110.34 | |
| PN10-6F-L | Nylon | 221 Degrees F | 600V | 1" | Grip Sleeved | #6 | 12 to 10 AWG | 50 | €113.95 | |
| PN10-8F-D | Nylon | 221 Degrees F | 600V | 1.03" | Grip Sleeved | #8 | 12 to 10 AWG | 500 | €416.51 |
