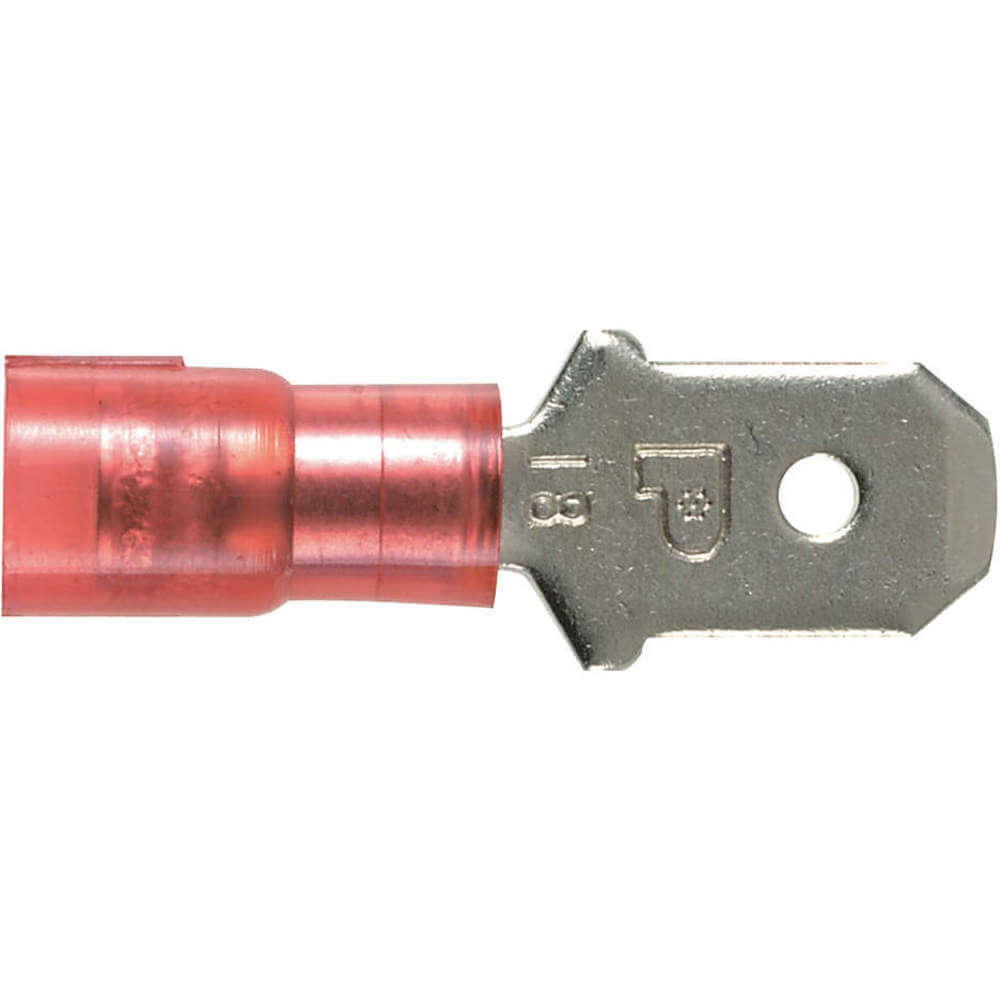

| Item | Male Disconnect |
| Barrel Inside Dia. | 2/25" |
| Barrel Size | Standard |
| Barrel Style | Grip Sleeve |
| Barrel Type | Standard |
| Base Material | Copper |
| Color Code | Red |
| Connection Type | Crimp |
| Contact Finish | Nickel |
| Contact Material | Copper |
| Contact Plating | Nickel |
| Disconnect Style | Tab |
| Disconnect Type | Male Tab Disconnect |
| Features | Flame Retardant |
| Insulation | Partial |
| Insulation Color | Red |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Max. Wire Size | 18 AWG |
| Minimum Wire Size | 22 AWG |
| Overall Length | 0.9" |
| Packaging Type | Bottle |
| Product Color | Red |
| Product Material | Copper |
| Rohs Compliant | Yes |
| Seam | Sleeved Barrel |
| Seam Style | Sleeved Barrel |
| Tab Size | 0.032" x 0.25" |
| Tab Thickness | 0.032" |
| Tab Width | 1/4" |
| Terminal Type | Male Tab , Tab |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Wire Size | 22 AWG to 18 AWG |
| Barrel Id | 0.08" |
| Flammability Rating | HB, V-2 |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V |
| Maximum Wire Size | 18 AWG |
| Minimum Operating Temperature | -60°F |
| Special Features | Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Male Tab can be Inserted and Removed From the Female Disconnect Without the Use of Tools for Lower Installed Cost, Male Tab Couples With (All 0.250 x 0.032) Female Disconnects, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Vibration Resistant |
| Standards | C22.2 NO.153, CSA CERTIFIED LR31212, UL 310 LISTED, UL LISTED 20H3 E78522 |
| Strip Length | 1/4" |
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 10.41 |
| Ship length (cm) | 3.3 |
| Ship width (cm) | 5.08 |
| Country of Origin | MX |
| Product | Model | Barrel Inside Dia. | Connection Material | Insulation | Seam | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
DNF18-250FIM-L | 0.062" | Nickel-Plated Brass | Full | Butted | 50 | €102.98 | |
|
DNF18-250FIM-M | 0.062" | Nickel-Plated Brass | Full | Butted | 1 | €958.33 |
