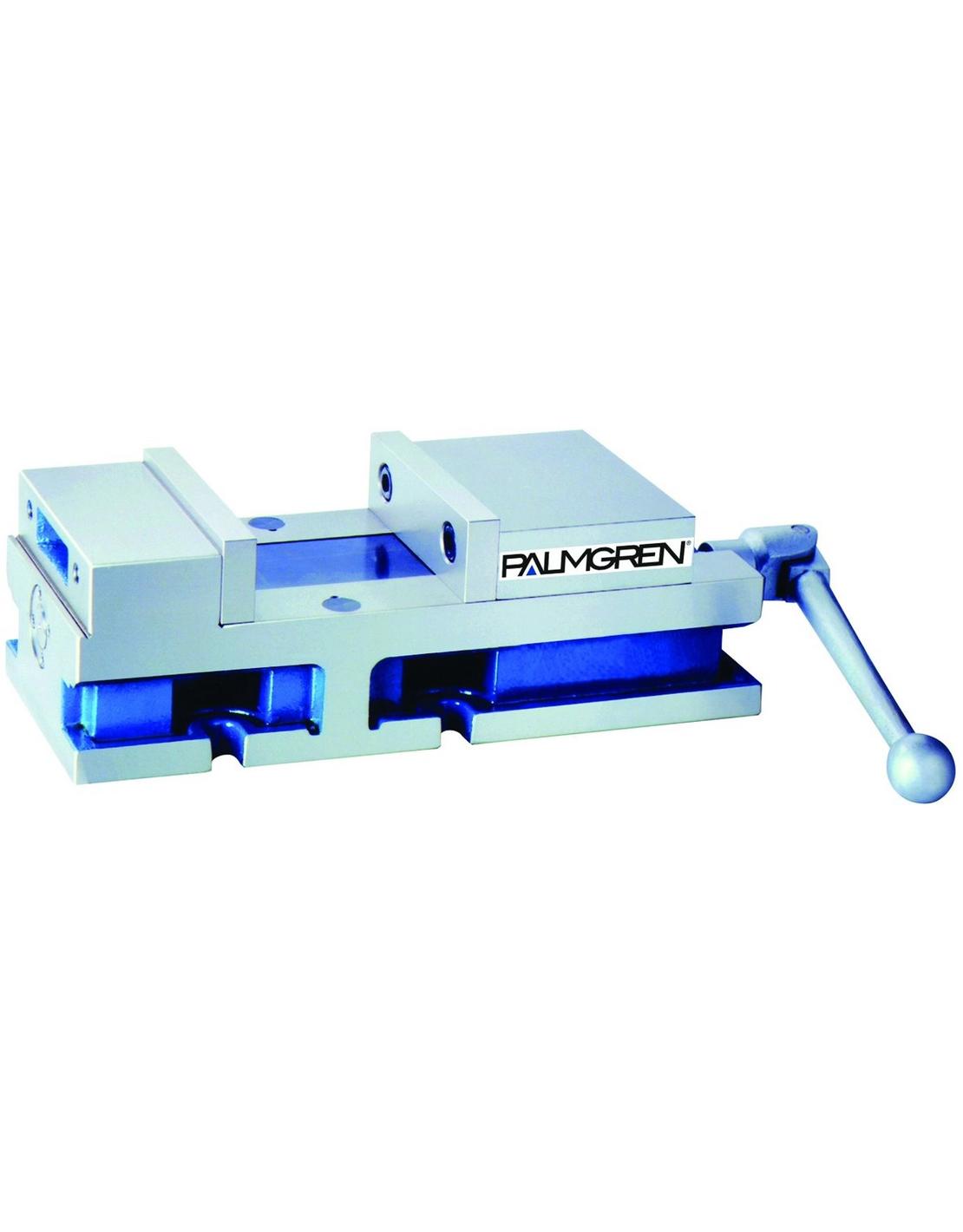

| Item | Machine Vise |
| Bed/base | Ground |
| Clamping Force | 7960 lbs. |
| Jaw Deflection | 0.005" |
| Jaw Opening | 6 13/32" |
| Jaw Plate | Smooth |
| Jaw Width | 5.953" |
| Overall Length | 17" |
| Throat Depth | 1.75" |
| Type | Dual Force |
| Vise Jaw Material | Steel |
| Vise Material | Iron |
| Base Material | Steel |
| Base Type | Fixed |
| Compatible Machinery | CNC Milling Machine |
| Features | 70, 000 psi Ductile Iron Castings, Clamping - 0.0005" Repeatability, Palmgren'S Anti-Lift Mechanism |
| Jaw Deflection - Maximum | 0.005" |
| Jaw Face Type | Smooth |
| Jaw Face Width | 3/4" |
| Jaw Material | Steel |
| Lead Screw Type | ACME |
| Machine Vise Type | Precision |
| Max Bed/base Parallel Tolerance | 0.0004" |
| Max Clamping Force | 7960 lbf. |
| Max Jaw Opening | 6 13/32" |
| Mounting Slot Length | 1" |
| Mounting Slot/keyway Width | 5/8" |
| Mounting Type | (2) Lugs |
| Overall Height | 7" |
| Overall Width | 10 3/5" |
| Ship weight (kg) | 31.05 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 26.92 |
| Country of Origin | TW |
