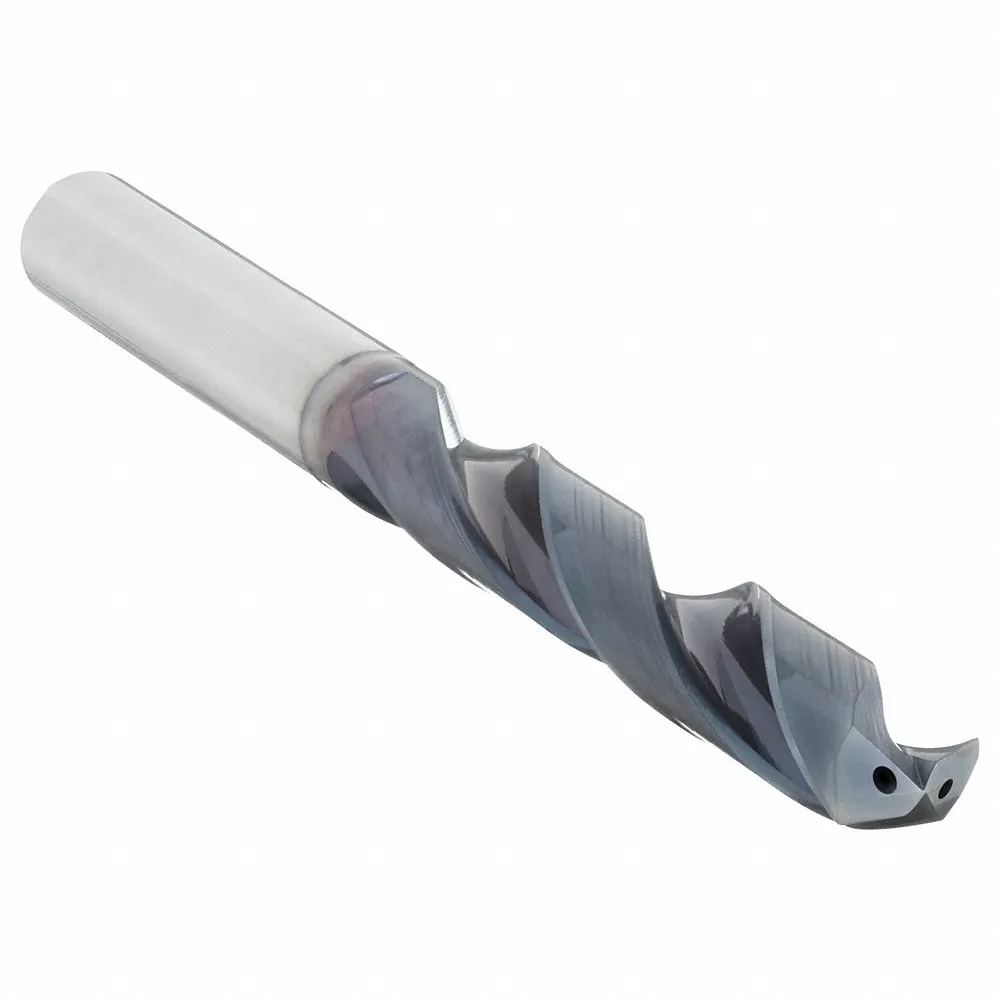

| Item | Jobber Length Drill Bit |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.5156 |
| Depth X Dia. Ratio | 5xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Solid Carbide |
| Drill Diameter Tolerance | +0.007 mm to +0.025 mm , 0.007 mm to 0.025 mm |
| Drill Length Class | Jobber Length |
| Finish | Titanium Aluminum Nitride Coat |
| Flute Length | 77 mm |
| Flute Type | Spiral |
| Material | Carbide |
| Max. Drilling Depth | 77 mm |
| Mfr. Series | HP255 |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 124 mm |
| Point Angle | 140° |
| Point Type | R Thinning Point |
| Primary Material Application | Cast Iron, Hardened Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, P |
| Secondary Material Application | Aluminum, Hardened Steel, Nickel, Stainless Steel, Titanium |
| Secondary Material Application Iso Code | H, M, N, S |
| Shank Dia. | 14 mm |
| Shank Length | 47 mm |
| Shank Type | Straight |
| Sheeter Drill | No |
| Size | 0.516" |
| System Of Measurement | Fractional Inch , Imperial |
| Depth:dia. Ratio | 5xD |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | R Thinning Point |
| Drill Bit Size | 33/64" |
| Finish - Machining | TiAlN |
| Helix Angle | 30° |
| Material - Machining | Carbide |
| Maximum Drilling Depth | 77 mm |
| Measurement System | Fractional Inch |
| Series | HP255 Series |
| Shank Diameter | 14 mm |
| Shank Type - Machining | Straight |
| Standards | NOT RATED |
| Ship weight (kg) | 0.23 |
