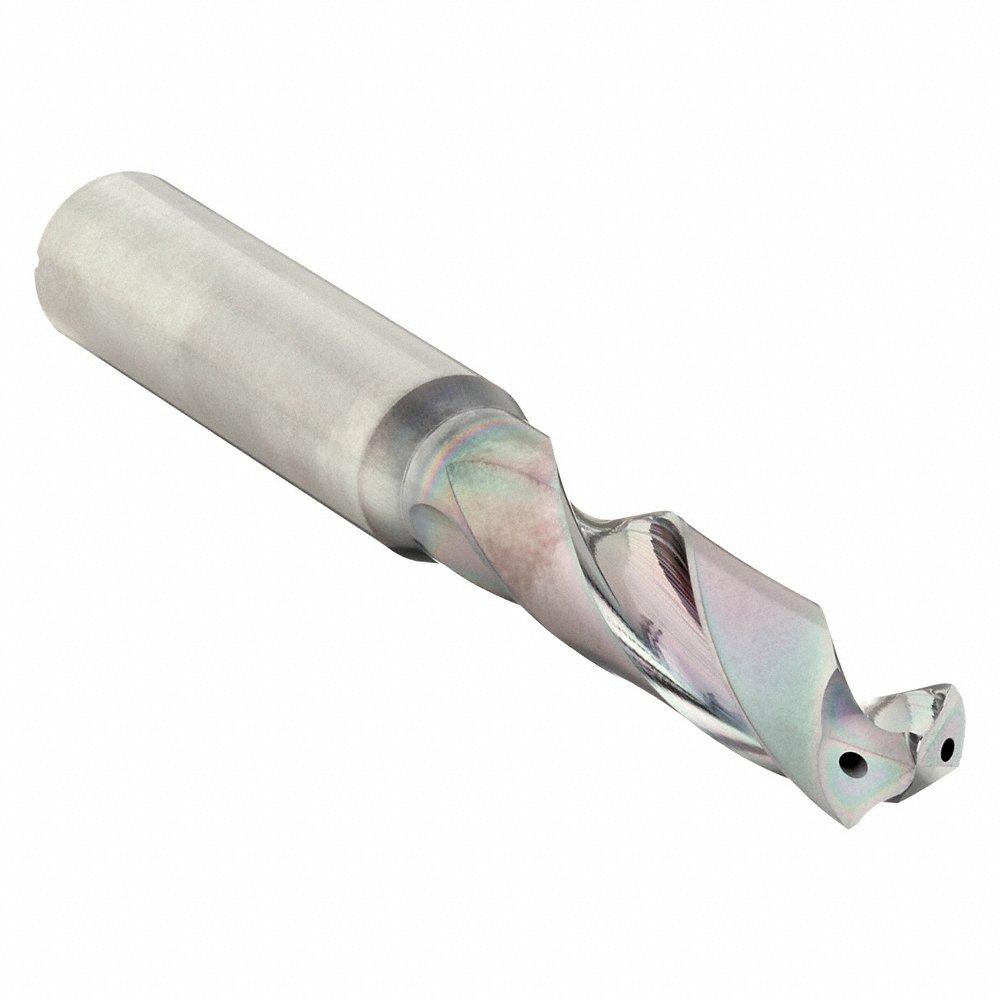

| Item | Screw Machine Drill Bit |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.5781 |
| Depth X Dia. Ratio | 3xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Egias |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | X Thinning Point |
| Drill Bit Size | 0.578" |
| Drill Length Class | Screw Machine Length |
| Finish | EgiAs |
| Flute Length | 74 mm |
| Flute Type | Spiral |
| Grade | High Performance |
| List Number | 6500 |
| Material | Carbide , Solid Carbide |
| Number Of Coolant Holes | 3 |
| Number Of Flutes | 2 |
| Overall Length | 140 mm |
| Primary Material Application | Hardened Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | 4.3, H, P |
| Secondary Material Application | Aluminum, Inconel, Stainless Steel |
| Secondary Material Application Iso Code | M, N, S |
| Shank Dia. | 15.9 mm |
| Shank Length | 66 mm |
| Shank Type | Straight |
| Sheeter Drill | No |
| System Of Measurement | Imperial |
| Depth:dia. Ratio | 3xD |
| Drill Diameter Tolerance | +0.000, -0.027 mm |
| Finish - Machining | EgiAs |
| Material - Machining | Carbide |
| Material Grade - Machining | High Performance |
| Measurement System | Fractional Inch |
| Shank Diameter | 15.9 mm |
| Shank Type - Machining | Straight |
| Standards | NOT RATED |
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
