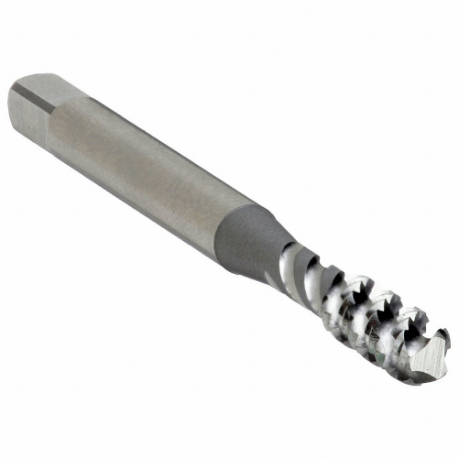

| Item | Spiral Flute Tap |
| 55% Thread Drill Size | #37 |
| 65% Thread Drill Size | #38 |
| 75% Thread Drill Size | 2.5 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 2.48 mm, 2.51 mm, 2.55 mm, 2.58 mm, 2.61 mm |
| Extended Neck | Yes |
| Features | Class Of Fit Spiral Flute Taps For Ferrous And Non-Ferrous Material |
| Finish | Bright |
| Fits Class | Class 6H |
| Grade | Grade 298 |
| Helix Angle | 50° |
| Number Of Flutes | 2 |
| Overall Length | 1.938" |
| Primary Material Application | Steel |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Shank Dia. | 0.141" |
| Shank Length | 1.312" |
| Shank Type | Straight |
| Square Size | 0.11" |
| System Of Measurement | Metric |
| Tap Chamfer | Bottoming |
| Tap Material | High Speed Steel |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 5/8" |
| Thread Limit | 6H |
| Thread Pitch | 0.5 mm |
| Thread Size | M3 x 0.5 |
| Thread Standard | Metric Coarse |
| Class Of Fit | Class 6H |
| Material Grade - Machining | Grade 298 |
| Measurement System | Metric |
| Primary Material Application Iso Code | P |
| Secondary Material Application Iso Code | N |
| Shank Type - Machining | Straight |
| Standards | ANSI |
| Tap Finish | Bright (Uncoated) |
| Tap Style | Spiral Flute |
| Tap Thread Size | M3 x 0.5 |
| Thread Limit / Class Of Fit | 6H |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
