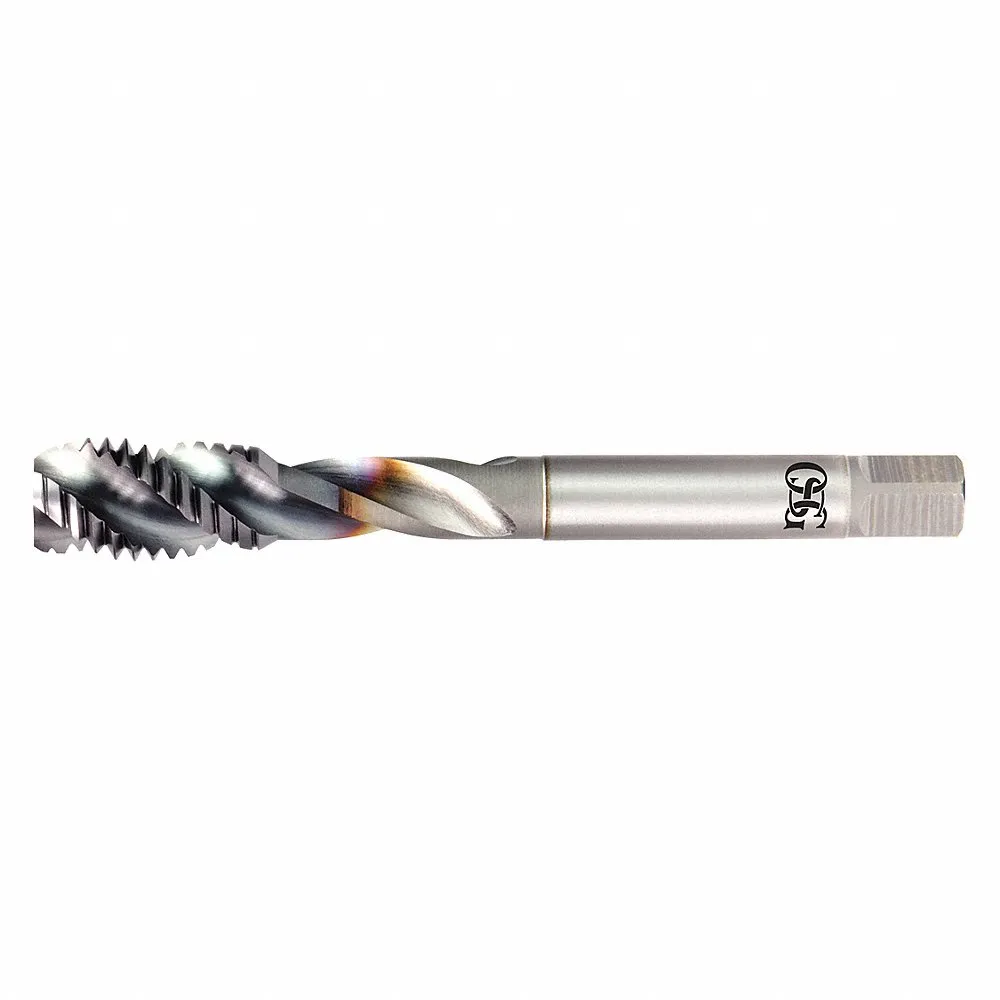

| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 10.9 mm |
| 65% Thread Drill Size | 0.422" |
| 75% Thread Drill Size | 10.5 mm |
| Coolant Fed | Coolant Through |
| Drill Bit Size | 21.92 mm, 22.05 mm, 22.18 mm, 22.31 mm, 22.44 mm |
| Extended Neck | Yes |
| Features | Osg'S Proprietary V Coating, Powder Metallurgy Hss, Sharp Cutting Edge, Variable Helix Flute |
| Finish | Titanium Carbonitride Coated |
| Grade | Grade 16540 |
| Number Of Flutes | 3 |
| Overall Length | 100 mm |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Shank Dia. | 9.32 mm |
| Shank Length | 50.9 mm |
| Shank Type | Straight |
| Square Size | 6.98 mm |
| System Of Measurement | Metric |
| Tap Length Standard | DIN |
| Tap Material | Powdered Metal |
| Tap Shank Standard | DIN |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 14 mm |
| Thread Limit | D6 |
| Thread Pitch | 1.5 mm |
| Thread Size | M12 x 1.5 |
| Thread Standard | Metric Fine |
| Material Grade - Machining | Grade 16540 |
| Measurement System | Metric |
| Primary Material Application Iso Code | H, M, P |
| Secondary Material Application Iso Code | K, N, P |
| Shank Type - Machining | Straight |
| Standards | DIN |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | TiCN |
| Tap Style | Spiral Flute |
| Tap Thread Size | M12 x 1.5 |
| Thread Limit / Class Of Fit | D6 |
| Ship weight (kg) | 0.05 |
| Product | Model | Finish | List Number | Material | Number Of Flutes | Overall Length | Pitch | Pitch Diameter Limits | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | TiN | 107 | High Speed Steel | 3 | 2.5" | 20 | H3 | 0.191" | €31.28 | |
 |
1645514207 | TiN | 16455 | High Speed Steel-E | 3 | 110mm | 2.00mm | D7 | 10.90mm | €176.52 | |
|
1645516205 | TiN | 16455 | High Speed Steel-E | 3 | 110mm | 2.00mm | D5 | 12.00mm | €198.80 | |
|
1645516207 | TiN | 16455 | High Speed Steel-E | 3 | 110mm | 2.00mm | D7 | 12.00mm | €198.80 | |
|
1645518257 | TiN | 16455 | High Speed Steel-E | 4 | 125mm | 2.50mm | D7 | 13.70mm | €271.75 | |
 |
142008 | TiCN | 313 | VC-10 | 2 | 2" | 32 | H4 | 0.141" | €77.64 | |
|
142108 | TiCN | 313 | VC-10 | 2 | 2.125" | 32 | H2 | 0.168" | €77.22 |
