Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

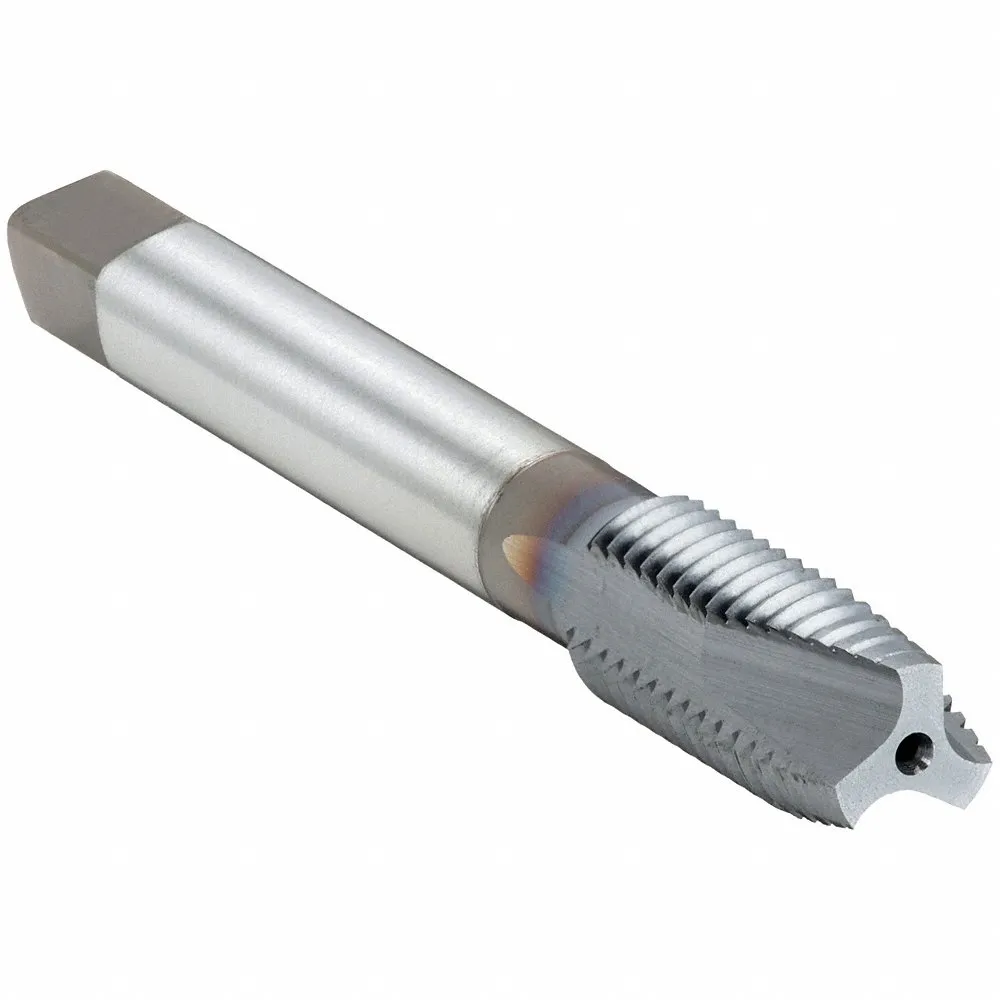

| Item | Tap |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Features | Spiral Point Sti Tap For Aluminum |
| Number Of Flutes | 3 |
| Overall Length | 2.719" |
| Primary Material Application | Aluminum |
| Shank Dia. | 0.312" |
| Spiral Direction | Neutral |
| System Of Measurement | Imperial |
| Tap Chamfer | Plug |
| Tap Finish | TiCN |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Point |
| Thread Direction | Right Hand |
| Thread Length | 0.656" |
| Thread Size | 1/4"-28 |
| Thread Standard | Fine |
| Threads Per Inch | 28 |
| 55% Thread Drill Size | 5.7 mm |
| 65% Thread Drill Size | 7/32" |
| 75% Thread Drill Size | 5.45 mm |
| Material Grade - Machining | Grade 11036 |
| Measurement System | Fractional Inch |
| Primary Material Application Iso Code | N |
| Shank Length | 1 37/64" |
| Shank Type - Machining | Straight |
| Square Size | 0.2380" |
| Tap Thread Size | 1/4"-28 |
| Thread Limit | H3 |
| Ship weight (kg) | 0.02 |
| Product | Model | Price | |
|---|---|---|---|
 |
31440508 | €68.79 | |
 |
31420508 | €66.57 | |
 |
1103600500 | €49.28 | |
|
1103600508 | €56.65 | |
|
31420108 | €62.80 | |
|
31440108 | €62.80 | |
 |
1103600108 | €67.94 |
