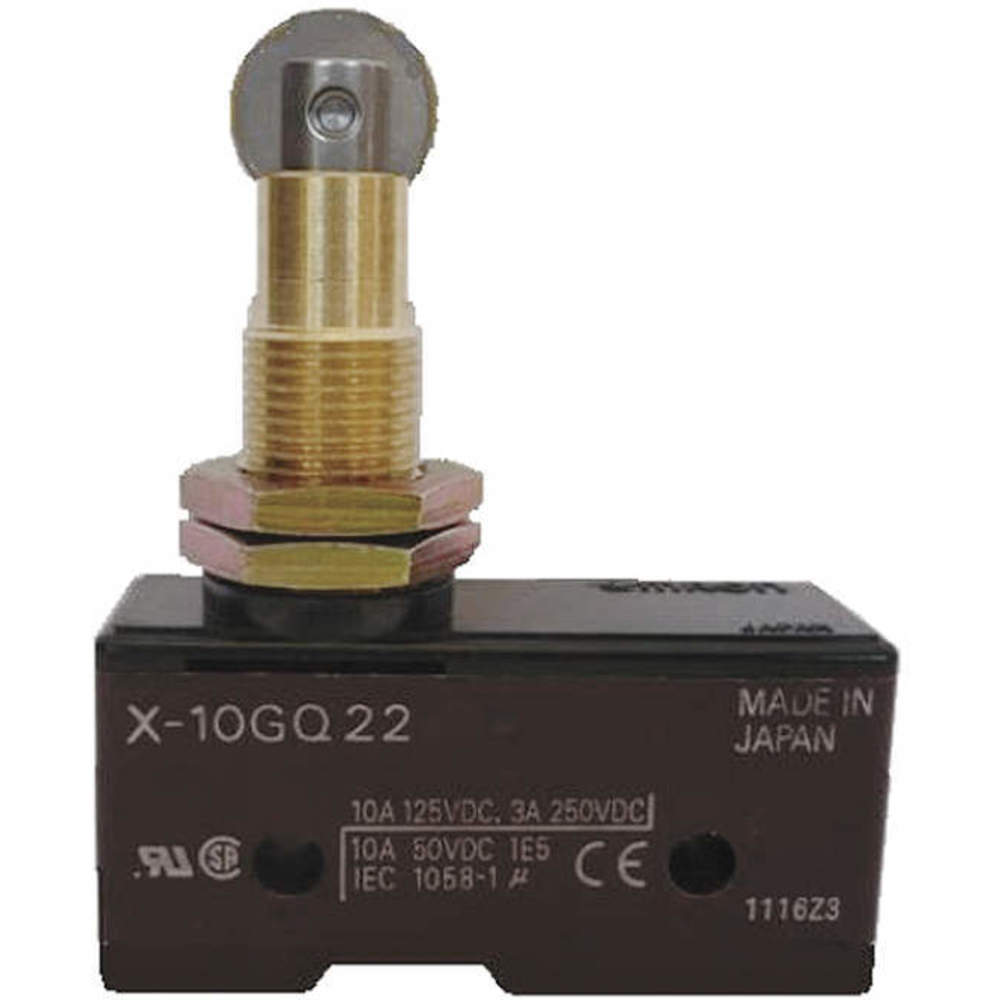

| Item | Snap Switch |
| Actuation Type | Panel Mount Roller Plunger |
| Actuator Length | 1.35" |
| Actuator Type | Panel Mount Roller Plunger |
| Actuator Type - Snap Action Switch | Panel Mount, Plunger, Roller |
| Amps Rating | 10A |
| Body Material | Phenolic |
| Contact Form | SPDT |
| Depth | 0.69" |
| Depth - Snap Action Switch | 0.69" |
| Differential Travel | 0.007" |
| Electrical Connection - Snap Action Switch | Solder Lug |
| Height | 0.89" |
| Height - Snap Action Switch | 0.89" |
| Length | 1.94" |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Max. Pretravel | 0.035" |
| Operating Force | 18 oz. |
| Operating Temp. | -13°F to +176°F |
| Over Travel | 0.14" |
| Release Force | 4.02 oz. |
| Terminal Type | Solder |
| Watertight | No |
| Ac Contact Rating | 2A @250V |
| Actuator Style | Plunger |
| Body Depth | 2.24" |
| Body Height | 0.77" |
| Body Width | 1.94" |
| Center Mounting Hole Distance | 1" |
| Dc Contact Rating | 10 A @ 120 V |
| Differential Travel - Maximum | 0.0071" |
| Display Qty | 1 |
| Electrical Connection | Solder |
| Includes | Threaded Neck with Nuts |
| Mounting Hole Diameter | 3/16" |
| Operating Force - Maximum | 5N |
| Operating Force - Minimum | 5N |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Overall Depth | 2.24" |
| Overall Height | 0.77" |
| Overall Width | 1.94" |
| Pre-travel | 0.217" |
| Roller Adjustability | Fixed |
| Roller Diameter | 1/2" |
| Roller Material | Stainless Steel |
| Roller Position | Offset |
| Roller Width | 0.19" |
| Series | X |
| Standards | CE, CSA, RU |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 5.08 |
| HS code | 8536509040 |
| Country of Origin | JP |
| Product | Model | Actuator Length | Current Rating | Differential Travel | Height | Max. Pretravel | Mounting Dimension | Operating Force | Operating Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A-20GQ22-B | 1.37" | 20A | 0.014" | 1.01" | 0.051" | 1" Centers | 22.24 oz. | -13 Degrees to 176 Degrees F | €48.51 | |
 |
A-20GQ22 | 1.37" | 20A | 0.014" | 0.89" | 0.051" | 1" Centers | 22.24 oz. | -13 Degrees to 176 Degrees F | €58.46 | |
 |
Z-15GQ22 | 1.33" | 15A | 0.002" | 0.89" | 0.016" | 1" Centers | 8.83 to 12.36 oz. | -13 Degrees to 176 Degrees F | €37.04 | |
 |
X-10GQ22-B | 1.35" | 10A | 0.007" | 1.01" | 0.035" | 1" Centers | 18.00 oz. | -13 Degrees to 176 Degrees F | €55.59 | |
 |
Z-15GQ22-B7-K | Not Applicable | 15A | 0.002" | - | 0.016" | 1.03" Centers | 8.8 to 12.3 oz. | -25 Degrees to 80 Degrees C | €34.91 |
