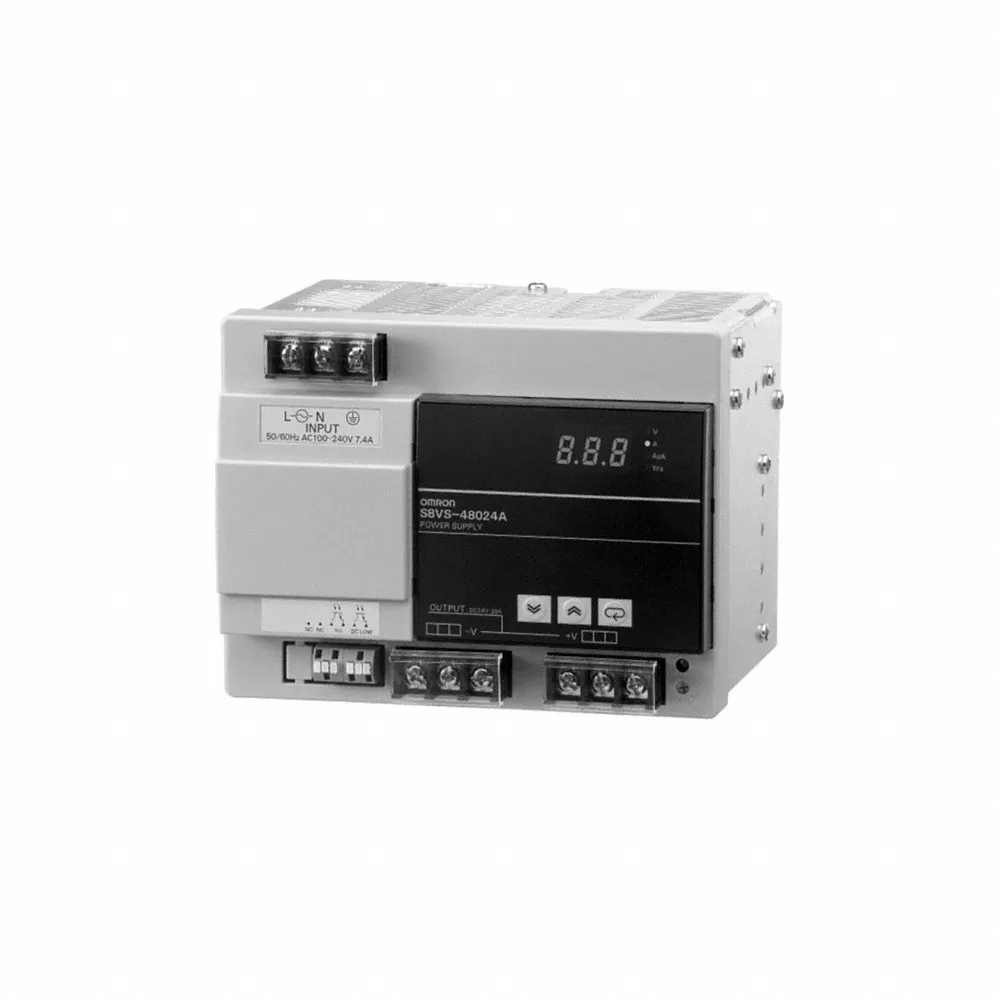

| Item | DC Power Supply |
| Case Material | Plastic |
| Depth | 127 mm |
| Frequency | 50/60 Hz |
| Height | 115 mm |
| Hold Up Time | 20 ms |
| Mounting | Din Rail |
| Operating Temp. Range | +14°F to +122°F |
| Output Amps | 20A |
| Output Noise | 310 mV |
| Peak Amps | 30A |
| Power Rating | 480 W |
| Style | Switching |
| Width | 150 mm |
| Current - Inrush | 28A |
| Current - Output | 20A |
| Current - Peak | 30A |
| Hold Up Time - Minimum | 37 ms, 41 ms |
| Housing Material | Plastic |
| Input Frequency - Maximuim | 63 Hz |
| Input Frequency - Minimum | 47 Hz |
| Input Frequency - Nominal | 50/60 Hz |
| Input Voltage | 100-240V AC |
| Manufacturer Warranty | 5 yrs. |
| Mean Time Between Failures (mtbf) | 60000 hrs. |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | 14°F |
| Output Noise - Maximum | 310 mV |
| Output Power - Rated | 480 W |
| Output Voltage - Nominal | 24V DC |
| Overall Depth | 5.01" |
| Overall Height | 4.71" |
| Overall Width | 5.91" |
| Phase | Single |
| Power Supply Style | Switching |
| Series | S8VS Series |
| Special Features | 7-Segment Display, Overload Protection, Overvoltage Protection, Undervoltage Alarm Indication |
| Standards | CSA C22.2 NO. 62368-1 (CUR), CSA C22.2 NO.107.1 (CUL), EN 62368-1, EN 62477-1 (=VDE 0160), RCM MARK, UL 508 (LISTING), UL 62368-1 (RECOGNITION) |
| Start Up Time - Maximum | 550 ms |
| Status Indicator | Green LED |
| Wire Connection Type | Screw Terminals |
| Wire Size - Maximum | 14 AWG |
| Wire Size - Minimum | 28 AWG |
| Ship weight (kg) | 1.62 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 19.05 |
| HS code | 8504409540 |
| Product | Model | Case Material | Depth | Height | Operating Temp. Range | Power Rating | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
S8VK-G12024 | Metal | 122mm | 125mm | -40 Degrees to 158 Degrees F | 120W | 40mm | €141.76 | |
 |
S8VK-G24024 | Metal | 150mm | 125mm | -40 Degrees to 158 Degrees F | 240W | 60mm | €277.68 | |
 |
S8VK-G48024 | Metal | 150mm | 125mm | -40 Degrees to 158 Degrees F | 480W | 95mm | €330.78 | |
 |
S8VS-06024A | Molded Plastic | 108mm | 95mm | -13 Degrees to 149 Degrees F | 60W | 40mm | €250.60 | |
 |
S8VS-09024A | Molded Plastic | 121mm | 115mm | -13 Degrees to 149 Degrees F | 90W | 50mm | €332.45 | |
 |
S8VS-12024A | Molded Plastic | 121mm | 115mm | -13 Degrees to 149 Degrees F | 120W | 50mm | €355.83 | |
 |
S8VS-18024A | Molded Plastic | 125mm | 115mm | -13 Degrees to 149 Degrees F | 180W | 75mm | €496.86 |
