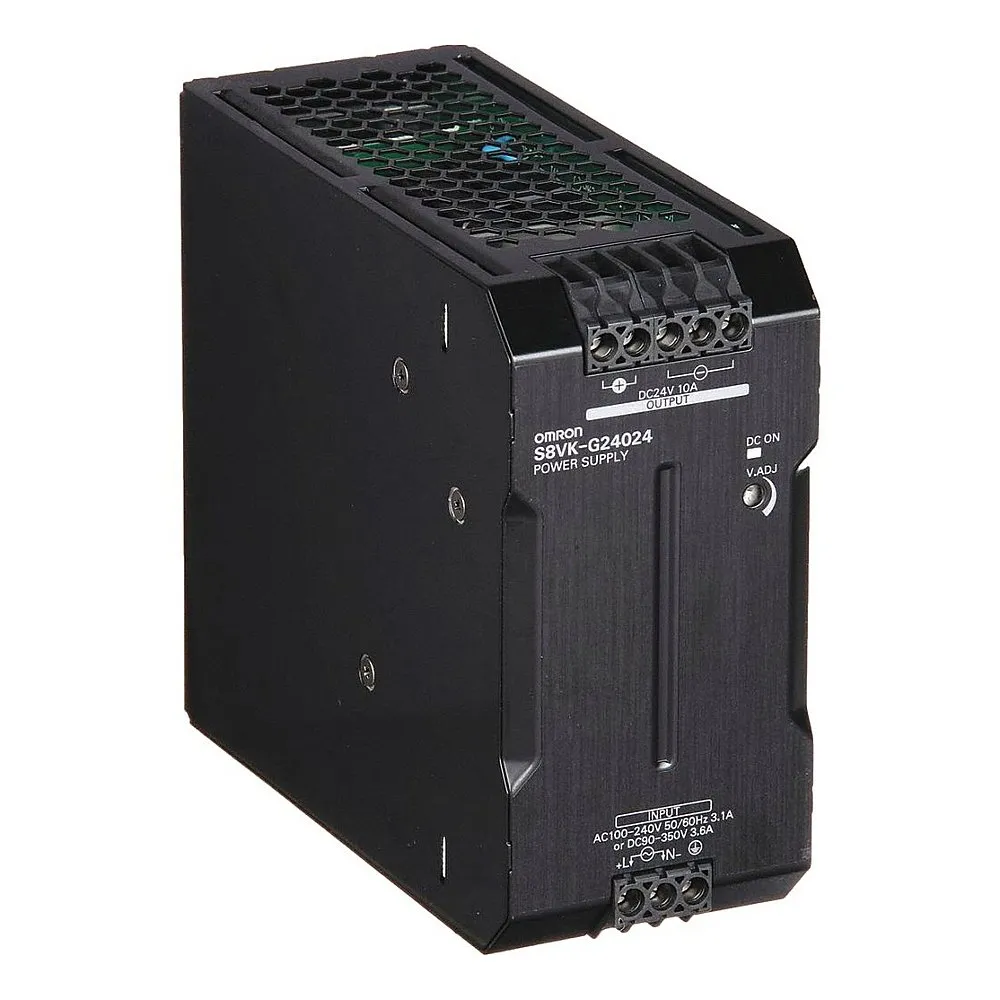

| Item | DC Power Supply |
| Case Material | Metal Case |
| Depth | 150 mm |
| Frequency | 50/60 Hz |
| Height | 125 mm |
| Hold Up Time | 44 ms |
| Mounting | Din Rail |
| Output Amps | 10A |
| Output Noise | 180 mV |
| Peak Amps | 12A |
| Power Rating | 240 W |
| Status Indicator | Green LED |
| Style | Switching |
| Width | 60 mm |
| Current - Inrush | 32A |
| Current - Output | 10A |
| Current - Peak | 12A |
| Hold Up Time - Minimum | 44 ms |
| Housing Material | Metal |
| Input Frequency - Maximuim | 63 Hz |
| Input Frequency - Minimum | 47 Hz |
| Input Frequency - Nominal | 50/60 Hz |
| Input Voltage | 100-240V AC |
| Ip Rating | IP20 |
| Manufacturer Warranty | 3 yrs. |
| Mean Time Between Failures (mtbf) | 135000 hrs. |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Output Noise - Maximum | 180 mV |
| Output Power - Rated | 240 W |
| Output Voltage - Nominal | 24V DC |
| Overall Depth | 5.91" |
| Overall Height | 4.92" |
| Overall Width | 2 9/25" |
| Phase | Single |
| Power Supply Style | Switching |
| Series | S8VK-G Series |
| Special Features | Automatic Reset, LED Diagnostic Indicators, Overload Protection, Overvoltage Protection, Parallel Capability, Series Operation |
| Standards | CE, CSA C22.2 No. 107.1/62368-1, cULus, cURus, EN50178, EN61558-2-16, EN62368-1, Lloyd’s Standards EN60204-1 PELV, UL 508/62368-1 |
| Start Up Time - Maximum | 290 ms |
| Wire Connection Type | Screw Terminals |
| Wire Size - Maximum | 10 AWG |
| Wire Size - Minimum | 20 AWG |
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 16.51 |
| HS code | 8504409530 |
| Country of Origin | CN |
| Product | Model | Case Material | Depth | Height | Operating Temp. Range | Power Rating | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
S8VK-G12024 | Metal | 122mm | 125mm | -40 Degrees to 158 Degrees F | 120W | 40mm | €141.76 | |
 |
S8VK-G48024 | Metal | 150mm | 125mm | -40 Degrees to 158 Degrees F | 480W | 95mm | €330.78 | |
 |
S8VS-06024A | Molded Plastic | 108mm | 95mm | -13 Degrees to 149 Degrees F | 60W | 40mm | €250.60 | |
 |
S8VS-09024A | Molded Plastic | 121mm | 115mm | -13 Degrees to 149 Degrees F | 90W | 50mm | €332.45 | |
 |
S8VS-12024A | Molded Plastic | 121mm | 115mm | -13 Degrees to 149 Degrees F | 120W | 50mm | €355.83 | |
 |
S8VS-18024A | Molded Plastic | 125mm | 115mm | -13 Degrees to 149 Degrees F | 180W | 75mm | €496.86 | |
 |
S8VS-24024A | Molded Plastic | 125mm | 115mm | -13 Degrees to 149 Degrees F | 240W | 3.94" | €584.81 |
