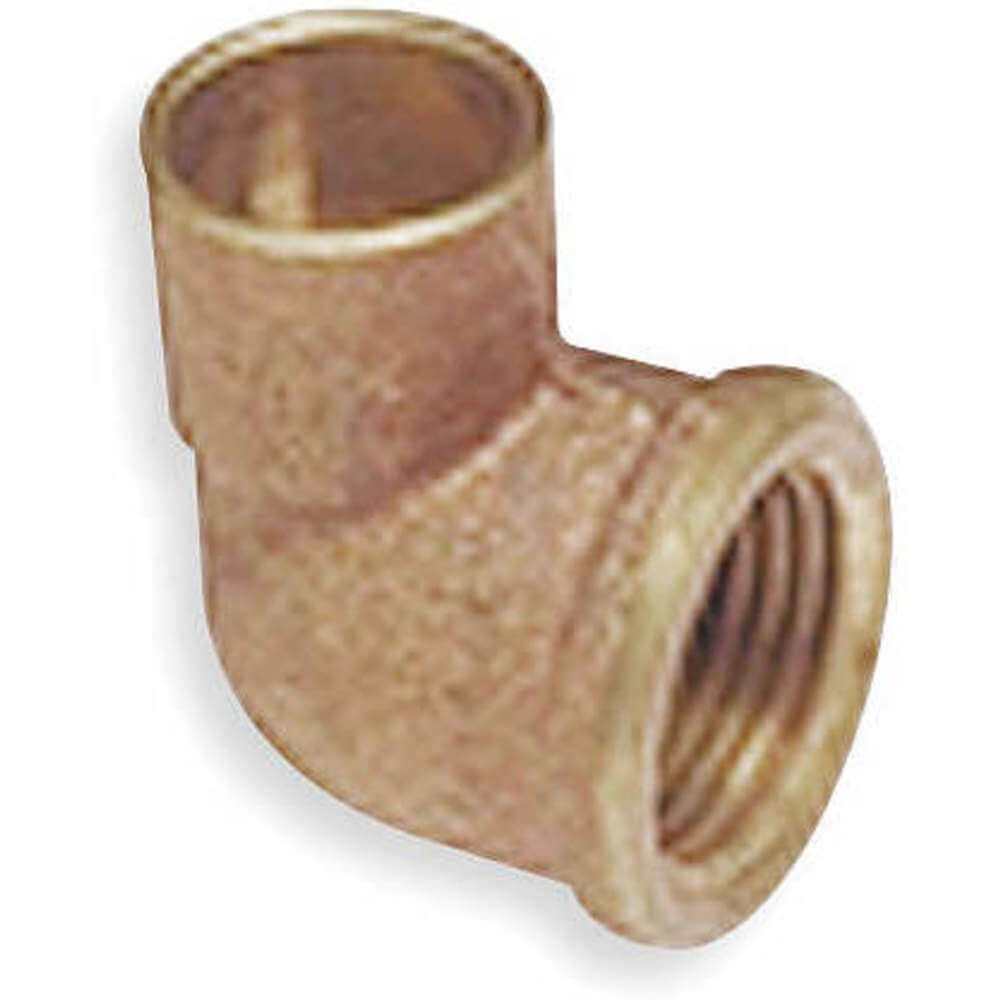

| Item | Elbow, 90 Degrees |
| Application | Air, Non-Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Cast Copper |
| Connection Type | C x FNPT |
| Fitting Material | Cast Copper |
| Fitting Side A Connection Type | Cup |
| Fitting Side A Copper Tube Size | 1/2" |
| Fitting Side A Tube Outer Dia. | 5/8" |
| Fitting Side B Pipe Size | 1/2" |
| Max. Pressure | 722 psi |
| Outside Dia. | 5/8" |
| Size | 1/2" |
| Temp. Range | -20°F to +400°F |
| Fitting Side A Tube Outer Diameter | 5/8" |
| Fitting Side B Connection Type | FNPT |
| Material Grade | C84400 |
| Maximum Operating Pressure | 722 psi @ 100°F |
| Maximum Operating Temperature | 400°F |
| Minimum Operating Temperature | 20°F |
| Resistance Properties | Dezincification Resistant |
| Specific Fitting Shape | 90° Elbow |
| Standards | ASME B16.18, ASTM B584 ALLOY C84400, ISO 9001 |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 4.06 |
| Ship width (cm) | 2.79 |
| HS code | 7412100000 |
| Country of Origin | MX |
