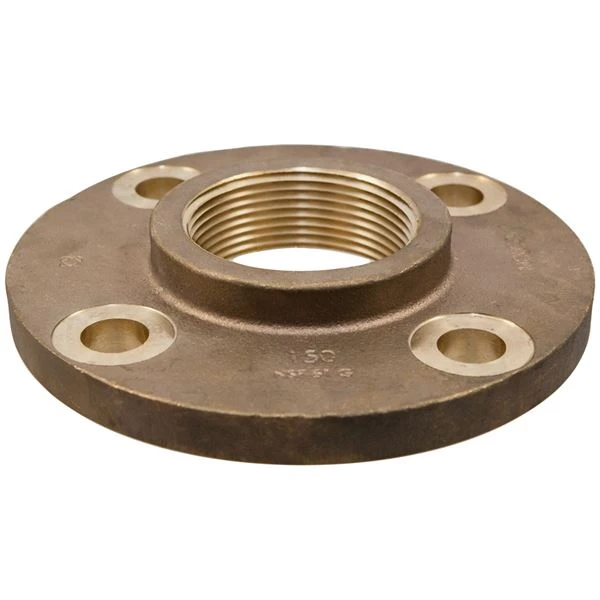

| Item | Class 150 Threaded Companion Flange |
| Application | Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Flange |
| Body Material | Low Lead Cast Bronze |
| Bolt Hole Diameter | 3/4" |
| Connection Type | C |
| Fitting Material | Bronze |
| Fitting Side A Pipe Size | 4" |
| Fitting Side B Connection Type | Flange |
| Flange Thickness | 0.69" |
| Flannge Outside Dia. | 9" |
| Max. Pressure | 235 psi |
| No. Of Bolt Holes | 8 |
| Size | 4" |
| Specific Pipe Fitting Shape | Flange |
| Temp. Range | -20°F to +200°F |
| Fitting Side A Connection Type | FNPT |
| Flange Outside Diameter | 9" |
| Maximum Operating Pressure | 235 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 20°F |
| Number Of Bolt Holes | 8 |
| Resistance Properties | Dezincification Resistant |
| Specific Fitting Shape | Class 150 Threaded Companion Flange |
| Standards | ASME B16.18, ISO 9001, NSF/ANSI 372, NSF/ANSI 61 |
| Ship weight (kg) | 5.16 |
| Ship height (cm) | 4.83 |
| Ship length (cm) | 24.89 |
| Ship width (cm) | 24.13 |
| HS code | 7412200000 |
| Country of Origin | MX |
