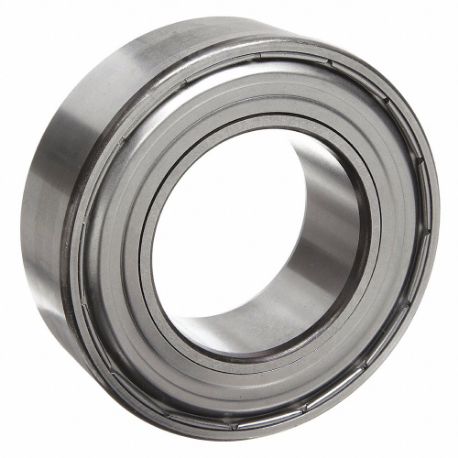

MRC 36FF Radial Ball Bearing, 626, Dbl Shield, 6 mm Bore, 19 mm Od, 6 mm Width, Alloy Steel Ring
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Radial Ball Bearing |
| Ball Material | Alloy Steel |
| Bore Dia. | 6 mm |
| Cage Material | Steel |
| Closure | Double Shielded |
| Dynamic Load Capacity | 530 lbf. |
| Max. Axial Load | 530 lbf. |
| Max. Speed | 50000 RPM |
| Max. Temp. | 212°F |
| Min. Temp. | 212°F |
| Number Of Rows | 1 |
| Outer Ring Width | 6 mm |
| Outside Dia. | 19 mm |
| Outside Dia. Tolerance | -9 µm to +9 µm |
| Ring Material | Alloy Steel |
| Shield Material | Steel |
| Static Load Capacity | 210 lbf. |
| Abec Rating | 1 |
| Bearing Industry Number | 626 |
| Bore Diameter | 6 mm |
| Bore Diameter Tolerance | 0/-8 µm |
| Closure & Seal Type | Double Shielded |
| Dynamic Radial Load Capacity | 530 lbf. |
| Includes Retaining Ring | No |
| Lubricant Material | Grease |
| Maximum Axial Load | 530 lbf |
| Maximum Speed | 50000 RPM |
| Maximum Temperature | 212°F |
| Minimum Temperature | 212°F |
| Outside Diameter | 19 mm |
| Outside Diameter Tolerance | +0/-9 micron |
| Static Radial Load Capacity | 210 lbf. |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
