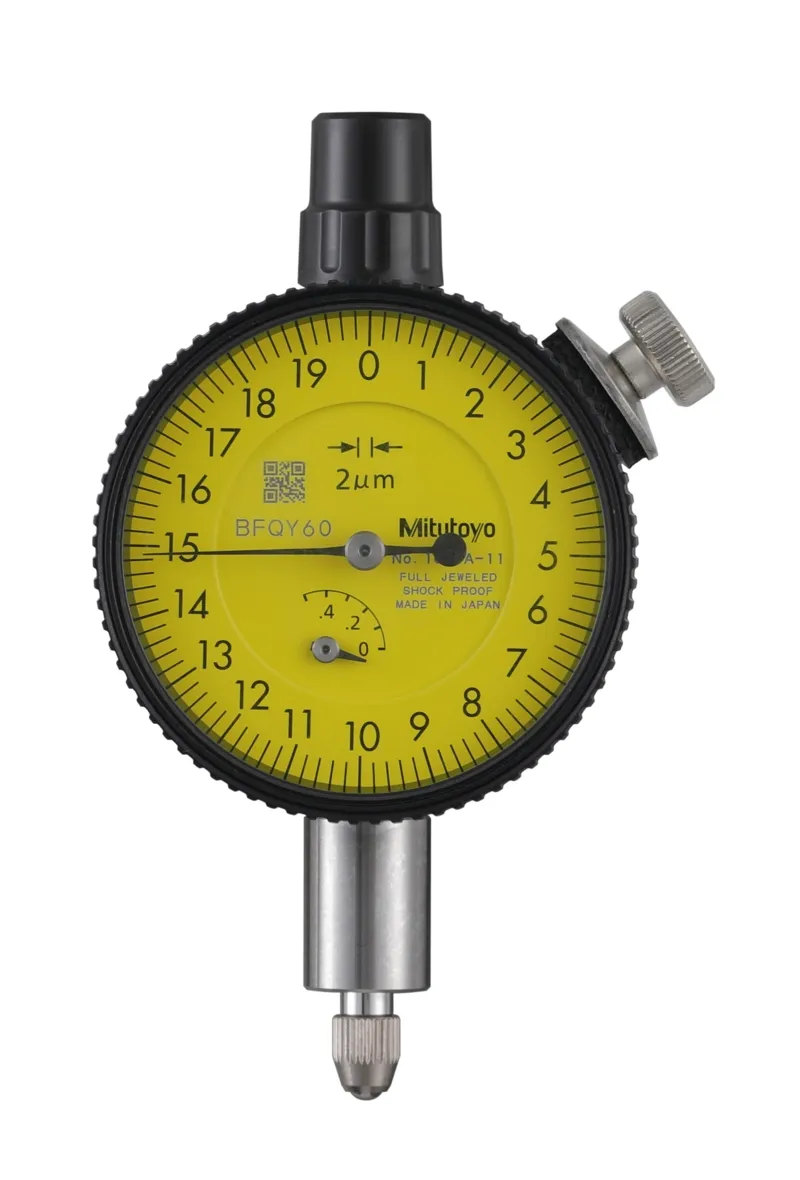

| Item | Dial Gauge |
| Contact Point: | Carbide tipped, thread: 4-48UNF |
| Dial Reading: | 0-20 |
| Digital/analog: | Analog |
| Graduation: | 0,002 mm |
| H Mpe(hysteresis): | 2 µm |
| Inch-metric: | Metric |
| Measuring Force: | 0,4-1,5 N |
| Mpe First 2 1/2 Revolutions: | ±2 µm |
| Mpe First One Revolution: | ±2 µm |
| R Mpe(repeatability): | ±1 µm |
| Range Per Rev.: | 1,5 mm |
| Range: | 0.5 mm |
| Stem: | 9.52 mm / 0.375" |
| Type: | ANSI/AGD Standard |
