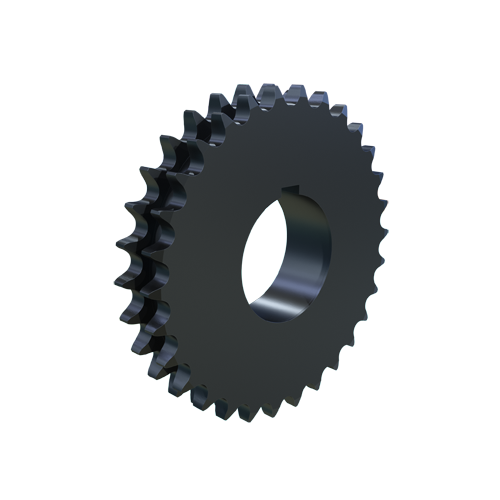

MARTIN SPROCKET D80R30 Roller Chain Sprocket, 80 Chain, Bushed MST, 30 Teeth, 9.567 Inch Pitch Dia., Steel
Get it by Wednesday, Jun 18
€524.70 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | R1 |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Solid |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 30 |
| Outside Dia. | 10.114" |
| Pitch Dia. | 9.5668" |
| Single Strand Tooth Thickness | 0.557" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 10.114" |
| Storage Dimension Width | 10.114" |
| Weight | 37 lbs. |
| Ship weight (kg) | 11.68 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 25.68 |
| Ship width (cm) | 25.68 |
