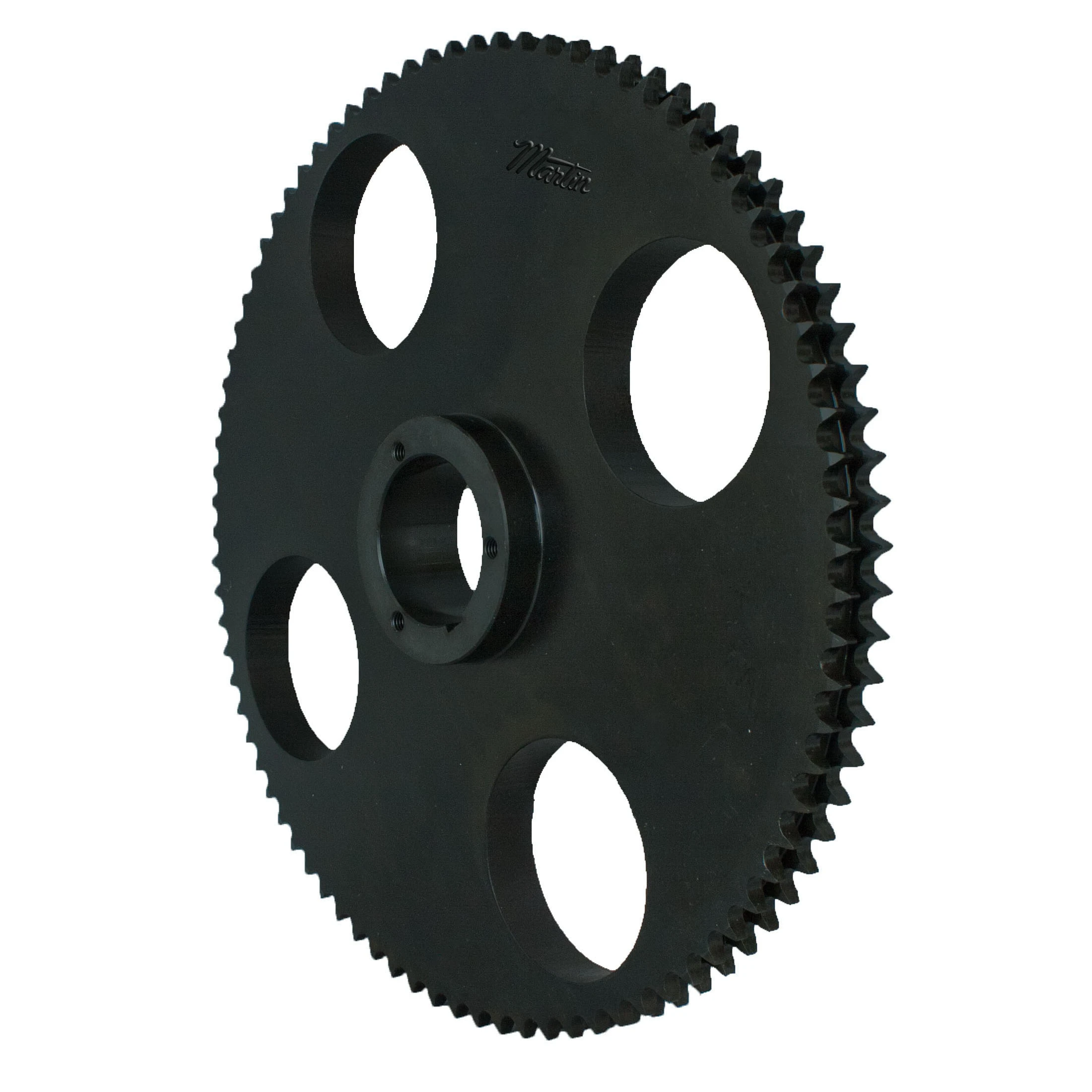

| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | R2 |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Welded |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 4" |
| Material | Steel |
| Max. Bore Size | 3 5/8" |
| Min. Bore Size | 1 3/8" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 52 |
| Outside Dia. | 17.132" |
| Pitch Dia. | 16.5622" |
| Single Strand Tooth Thickness | 0.557" |
| Storage Dimension Height | 4" |
| Storage Dimension Length | 17.132" |
| Storage Dimension Width | 17.132" |
| Weight | 65 lbs. |
| Ship weight (kg) | 28.5 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 43.51 |
| Ship width (cm) | 43.51 |
