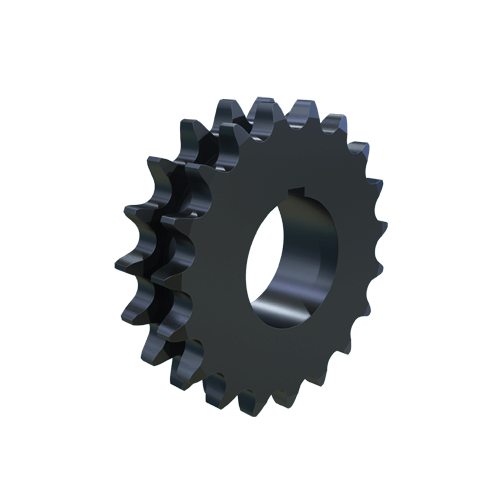

MARTIN SPROCKET D80Q19H Roller Chain Sprocket, 80 Chain, Bushed MST, 19 Teeth, 6.076 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€504.99 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | Q1 |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Solid |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hardened Teeth | 1 |
| Hub Configuration | A |
| Individually Packaged | No |
| Keyway Size | 1/2" |
| Length Through Bore | 1.704" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 19 |
| Outside Dia. | 6.593" |
| Pitch Dia. | 6.0755" |
| Single Strand Tooth Thickness | 0.557" |
| Storage Dimension Height | 1.71" |
| Storage Dimension Length | 6.593" |
| Storage Dimension Width | 6.593" |
| Weight | 8.57 lbs. |
| Ship weight (kg) | 3.86 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 16.74 |
| Ship width (cm) | 16.74 |
