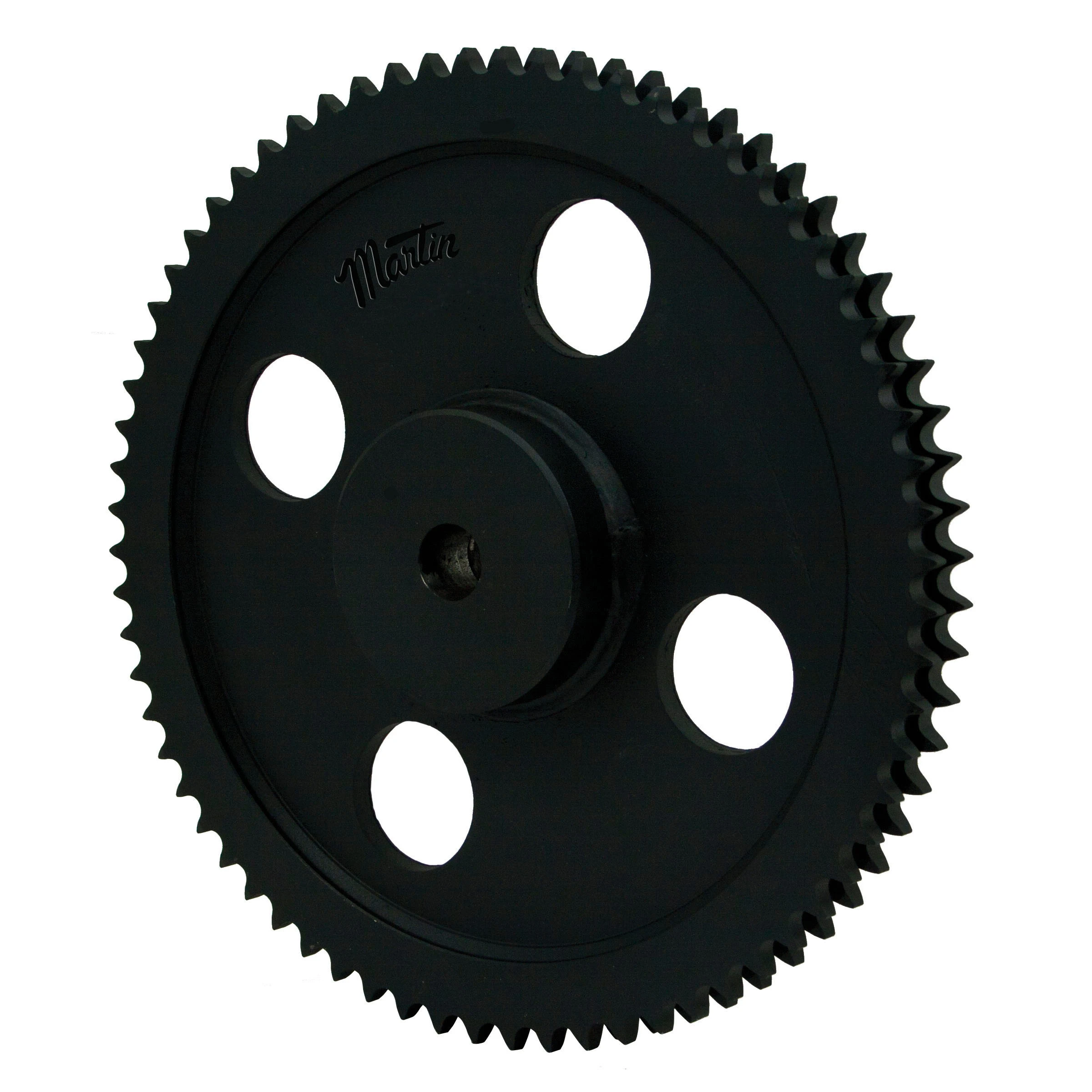

MARTIN SPROCKET D80C68 Sprocket, Stock Bore, 80 Chain, 68 Teeth, 21.653 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€1,231.19 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Welded With Lightening Holes |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | C |
| Hub Outside Dia. | 6" |
| Individually Packaged | No |
| Length Through Bore | 4" |
| Material | Steel |
| Max. Bore Size | 3 13/16" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 68 |
| Outside Dia. | 22.23" |
| Pitch Dia. | 21.6528" |
| Single Strand Tooth Thickness | 0.557" |
| Storage Dimension Height | 4" |
| Storage Dimension Length | 22.23" |
| Storage Dimension Width | 22.23" |
| Weight | 96.22 lbs. |
| Ship weight (kg) | 43.3 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 56.46 |
| Ship width (cm) | 56.46 |
