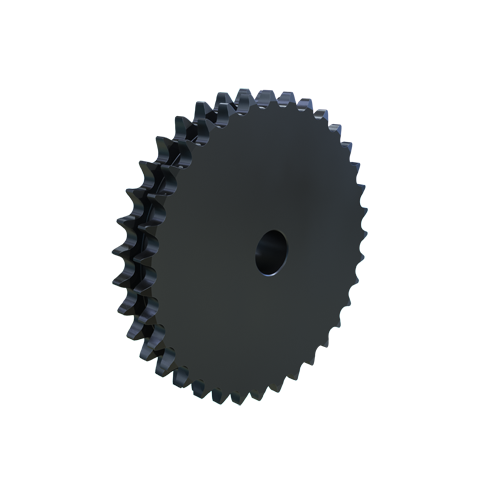

MARTIN SPROCKET D60B35 Roller Chain Sprocket, 60 Chain, Stock Bore, 35 Teeth, 8.367 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€279.79 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/2" |
| Individually Packaged | No |
| Length Through Bore | 2 3/8" |
| Material | Steel |
| Max. Bore Size | 3" |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 35 |
| Outside Dia. | 8.783" |
| Pitch Dia. | 8.3669" |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 2 3/8" |
| Storage Dimension Length | 8.783" |
| Storage Dimension Width | 8.783" |
| Weight | 22.72 lbs. |
| Ship weight (kg) | 10.22 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 22.3 |
| Ship width (cm) | 22.3 |
