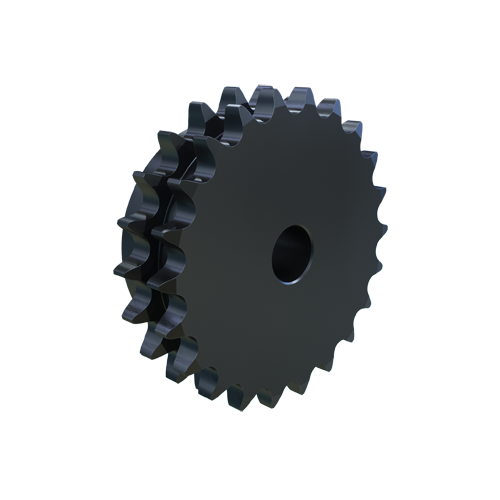

MARTIN SPROCKET D60B22H Sprocket, Stock Bore, 60 Chain, 22 Teeth, 5.270 Inch Pitch Dia., 5.666 Inch O.D., Steel
Get it by Tuesday, Jun 17
€205.78 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Construction | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2.14" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 22 |
| Outside Dia. | 5.666" |
| Pitch Dia. | 5.27" |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 2 1/8" |
| Storage Dimension Length | 5.666" |
| Storage Dimension Width | 5.666" |
| Weight | 9.71 lbs. |
| Ship weight (kg) | 4.36 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 14.4 |
| Ship width (cm) | 14.4 |
