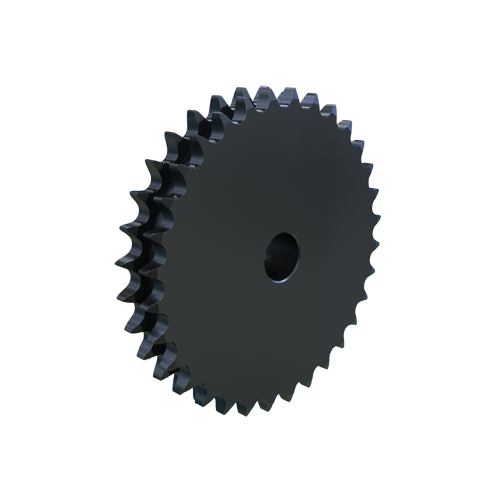

MARTIN SPROCKET D50B32 Roller Chain Sprocket, 50 Chain, Stock Bore, 32 Teeth, 6.376 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€229.42 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 3 3/4" |
| Individually Packaged | No |
| Length Through Bore | 1 7/8" |
| Material | Steel |
| Max. Bore Size | 2 1/2" |
| Min. Bore Size | 1" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 32 |
| Outside Dia. | 6.721" |
| Pitch Dia. | 6.3764" |
| Single Strand Tooth Thickness | 0.332" |
| Storage Dimension Height | 1 7/8" |
| Storage Dimension Length | 6.721" |
| Storage Dimension Width | 6.721" |
| Weight | 10.6 lbs. |
| Ship weight (kg) | 4.77 |
| Ship height (cm) | 4.78 |
| Ship length (cm) | 17.07 |
| Ship width (cm) | 17.07 |
