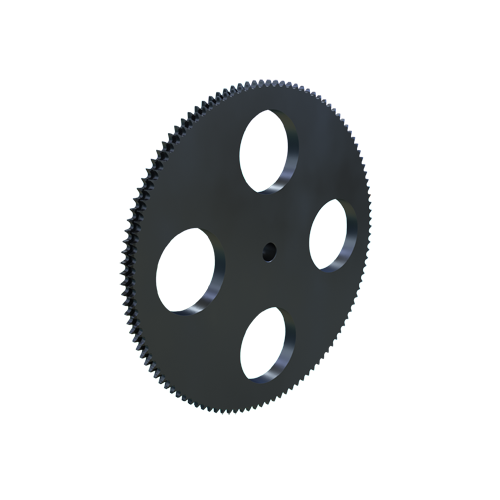

MARTIN SPROCKET D50B112 Sprocket, 50 Chain, 112 Teeth, 22.285 Inch Pitch Dia., 22.651 Inch O.D., Steel
Get it by Tuesday, Jun 17
€792.70 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Finished Bore Size | 1 5/16" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 5 1/4" |
| Individually Packaged | No |
| Length Through Bore | 2 3/8" |
| Material | Steel |
| Max. Bore Size | 3 5/16" |
| Min. Bore Size | 1 5/16" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 112 |
| Outside Dia. | 22.651" |
| Pitch Dia. | 22.2846" |
| Single Strand Tooth Thickness | 0.332" |
| Storage Dimension Height | 2 3/8" |
| Storage Dimension Length | 22.651" |
| Storage Dimension Width | 22.651" |
| Weight | 94 lbs. |
| Ship weight (kg) | 42.13 |
| Ship height (cm) | 6.03 |
| Ship length (cm) | 57.53 |
| Ship width (cm) | 57.53 |
