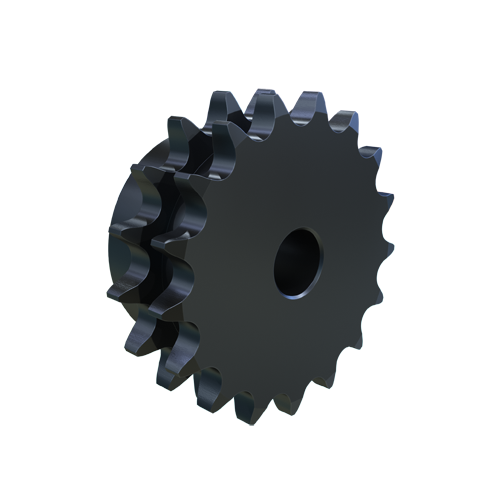

MARTIN SPROCKET D50B17H Roller Chain Sprocket, 50 Chain, Stock Bore, 17 Teeth, 3.401 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€137.95 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 2 11/16" |
| Individually Packaged | No |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 1 7/8" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 17 |
| Outside Dia. | 3.718" |
| Pitch Dia. | 3.4014" |
| Single Strand Tooth Thickness | 0.332" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 3.718" |
| Storage Dimension Width | 3.718" |
| Ship weight (kg) | 1.38 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 9.45 |
| Ship width (cm) | 9.45 |
