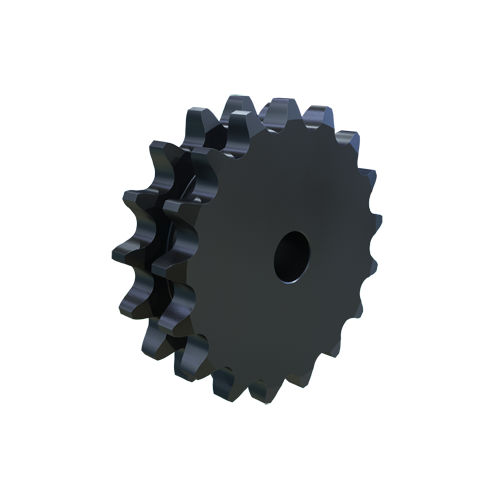

MARTIN SPROCKET D120B17 Roller Chain Sprocket, 120 Chain, Stock Bore, 17 Teeth, 8.163 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€779.68 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 120 |
| Chain Pitch | 1 1/2" |
| Construction | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 120 |
| For Chain Pitch | 1 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 5 1/4" |
| Individually Packaged | No |
| Length Through Bore | 3 3/4" |
| Material | Steel |
| Max. Bore Size | 3 1/2" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 17 |
| Outside Dia. | 8.924" |
| Pitch Dia. | 8.1633" |
| Single Strand Tooth Thickness | 0.894" |
| Storage Dimension Height | 3 3/4" |
| Storage Dimension Length | 8.924" |
| Storage Dimension Width | 8.924" |
| Weight | 37.07 lbs. |
| Ship weight (kg) | 16.61 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 22.66 |
| Ship width (cm) | 22.66 |
