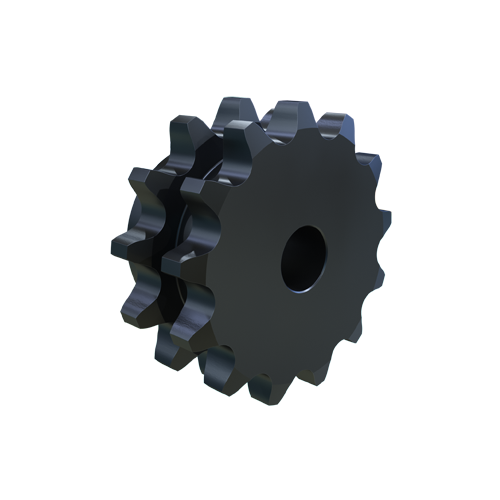

MARTIN SPROCKET D120B13 Sprocket, 120 Chain, 13 Teeth, 6.268 Inch Pitch Dia., 6.986 Inch O.D., Steel
Get it by Tuesday, Jun 17
€700.55 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 120 |
| Chain Pitch | 1 1/2" |
| Construction | Solid |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 120 |
| For Chain Pitch | 1 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/2" |
| Individually Packaged | No |
| Length Through Bore | 3 3/4" |
| Material | Steel |
| Max. Bore Size | 3" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 13 |
| Outside Dia. | 6.986" |
| Pitch Dia. | 6.2679" |
| Single Strand Tooth Thickness | 0.894" |
| Storage Dimension Height | 3 3/4" |
| Storage Dimension Length | 6.986" |
| Storage Dimension Width | 6.986" |
| Weight | 20.99 lbs. |
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 9.53 |
| Ship length (cm) | 17.75 |
| Ship width (cm) | 17.75 |
