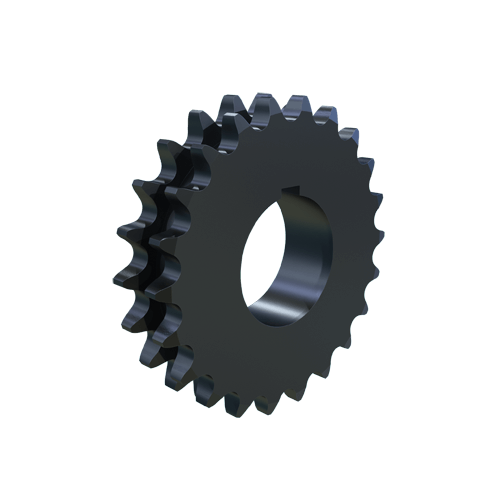

MARTIN SPROCKET D100R22 Sprocket, 100 Chain, 22 Teeth, 8.783 Inch Pitch Dia., 9.444 Inch O.D., Steel
Get it by Tuesday, Jun 17
€844.65 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | R1 |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Solid |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | A |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 2.07" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 22 |
| Outside Dia. | 9.444" |
| Pitch Dia. | 8.7833" |
| Single Strand Tooth Thickness | 0.669" |
| Storage Dimension Height | 2 2/25" |
| Storage Dimension Length | 9.444" |
| Storage Dimension Width | 9.444" |
| Weight | 23.32 lbs. |
| Ship weight (kg) | 10.49 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 23.98 |
| Ship width (cm) | 23.98 |
