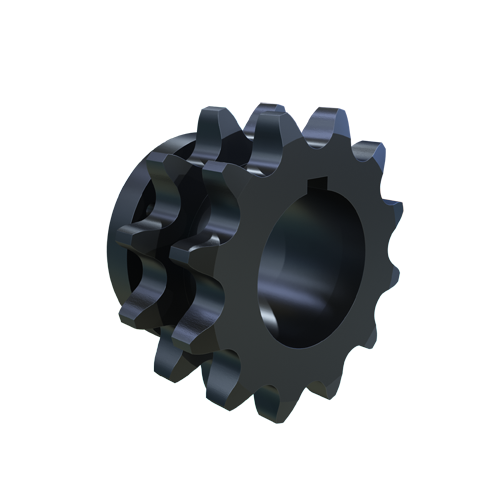

MARTIN SPROCKET D100Q12H Sprocket, 100 Chain, 12 Teeth, 4.830 Inch Pitch Dia., 5.415 Inch O.D., Steel
Get it by Tuesday, Jun 17
€564.97 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
Item | Roller Chain Sprocket |
Bore Type | Bushed Bore |
Bushing Part Number | Q2 |
Chain Number | 100 |
Chain Pitch | 1 1/4" |
Construction | Solid With Recess Groove |
For Chain Number | 100 |
For Chain Pitch | 1 1/4" |
Hardened Teeth | 1 |
Hub Configuration | B |
Hub Outside Dia. | 4 1/8" |
Hub Recessed For Chain | 1 |
Individually Packaged | No |
Keyway Size | 1/2" |
Length Through Bore | 2 3/4" |
Material | Steel |
Max. Bore Size | 2 5/8" |
Min. Bore Size | 1" |
Number Of Chain Rows | 2 |
Number Of Teeth | 12 |
Outside Dia. | 5.415" |
Pitch Dia. | 4.8296" |
Single Strand Tooth Thickness | 0.669" |
Storage Dimension Height | 3.19" |
Storage Dimension Length | 5.415" |
Storage Dimension Width | 5.415" |
Weight | 6.17 lbs. |
Ship weight (kg) | 2.78 |
Ship height (cm) | 8.89 |
Ship length (cm) | 13.77 |
Ship width (cm) | 13.77 |
