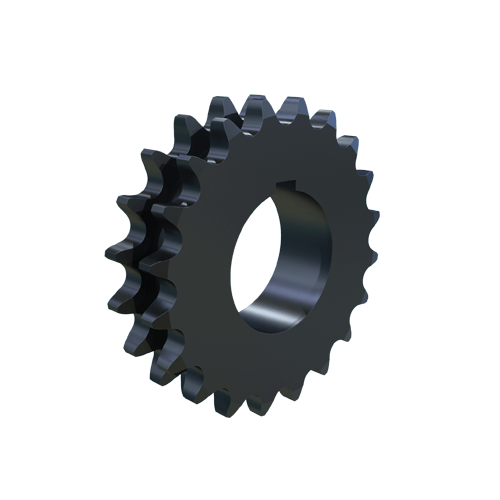

MARTIN SPROCKET D100R20 Sprocket, MST, 100 Chain, 20 Teeth, 7.991 Inch Pitch Dia., 8.642 Inch O.D., Steel
Get it by Tuesday, Jun 17
€727.95 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | R1 |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Solid |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | A |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 2.07" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 20 |
| Outside Dia. | 8.642" |
| Pitch Dia. | 7.9906" |
| Single Strand Tooth Thickness | 0.669" |
| Storage Dimension Height | 2 2/25" |
| Storage Dimension Length | 8.642" |
| Storage Dimension Width | 8.642" |
| Weight | 17.64 lbs. |
| Ship weight (kg) | 7.94 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 21.95 |
| Ship width (cm) | 21.95 |
