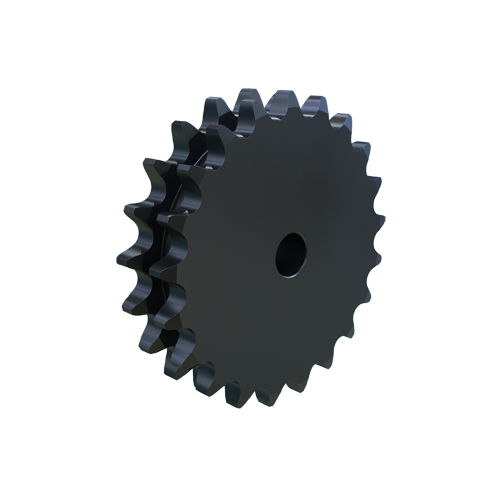

MARTIN SPROCKET D100B21 Sprocket, 100 Chain, 21 Teeth, 8.387 Inch Pitch Dia., 9.043 Inch O.D., Steel
Get it by Tuesday, Jun 17
€713.33 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Solid |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Length Through Bore | 3 3/8" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 21 |
| Outside Dia. | 9.043" |
| Pitch Dia. | 8.3869" |
| Single Strand Tooth Thickness | 0.669" |
| Storage Dimension Height | 3 3/8" |
| Storage Dimension Length | 9.043" |
| Storage Dimension Width | 9.043" |
| Weight | 35.24 lbs. |
| Ship weight (kg) | 15.86 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 22.96 |
| Ship width (cm) | 22.96 |
