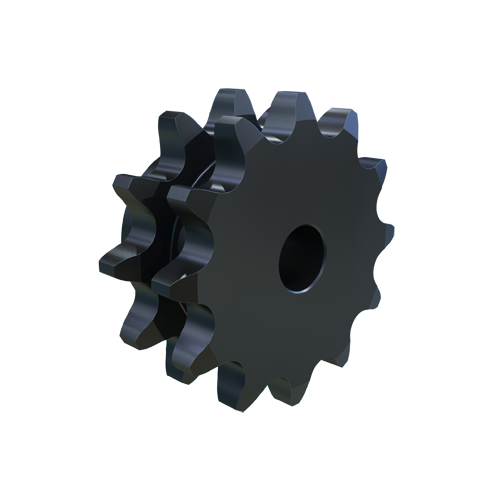

MARTIN SPROCKET D100B12 Roller Chain Sprocket, 100 Chain, Stock Bore, 12 Teeth, 5.415 Inch Outside Dia. Steel
Get it by Tuesday, Jun 17
€368.54 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Solid |
| Finished Bore Size | 1 1/8" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 3 3/8" |
| Individually Packaged | No |
| Length Through Bore | 2 7/8" |
| Material | Steel |
| Max. Bore Size | 2 1/4" |
| Min. Bore Size | 1 1/8" |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 12 |
| Outside Dia. | 5.415" |
| Pitch Dia. | 4.8296" |
| Single Strand Tooth Thickness | 0.669" |
| Storage Dimension Height | 2 7/8" |
| Storage Dimension Length | 5.415" |
| Storage Dimension Width | 5.415" |
| Weight | 9.21 lbs. |
| Ship weight (kg) | 4.14 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 13.77 |
| Ship width (cm) | 13.77 |
