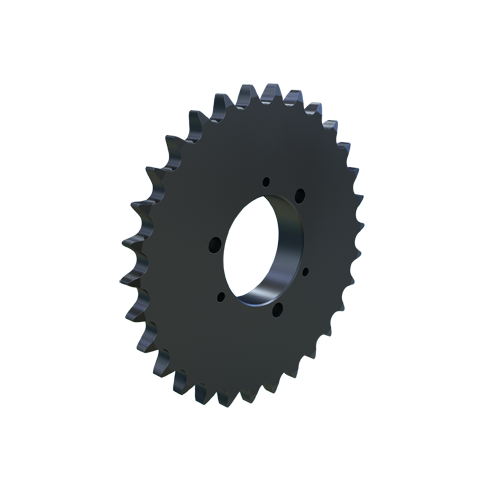

MARTIN SPROCKET 50SDS30 Sprocket, QD, 50 Chain, 30 Teeth, 5.979 Inch Pitch Dia., 6.321 Inch O.D., Steel
Get it by Tuesday, Jun 17
€148.60 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | SDS |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Welded |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | No |
| Length Through Bore | 3/4" |
| Material | Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 30 |
| Outside Dia. | 6.321" |
| Pitch Dia. | 5.9792" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 3/4" |
| Storage Dimension Length | 6.321" |
| Storage Dimension Width | 6.321" |
| Weight | 2.6 lbs. |
| Ship weight (kg) | 1.17 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 16.05 |
| Ship width (cm) | 16.05 |
