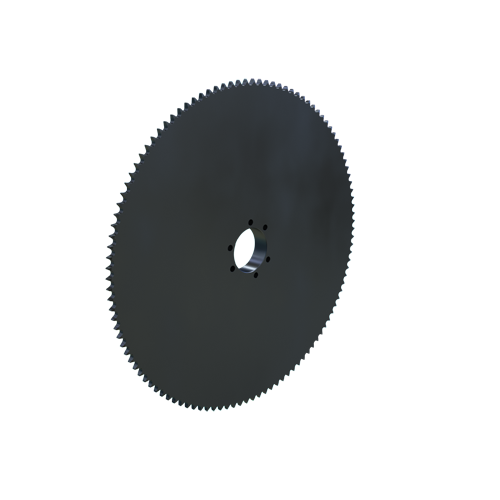

MARTIN SPROCKET 50SF112 Sprocket, QD, 50 Chain, 112 Teeth, 22.285 Inch Pitch Dia., 22.651 Inch O.D., Steel
Get it by Wednesday, Jun 18
€415.46 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | SF |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Welded |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 4 3/4" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2 15/16" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 112 |
| Outside Dia. | 22.651" |
| Pitch Dia. | 22.2846" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 22.651" |
| Storage Dimension Width | 22.651" |
| Weight | 38.49 lbs. |
| Ship weight (kg) | 17.32 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 57.53 |
| Ship width (cm) | 57.53 |
