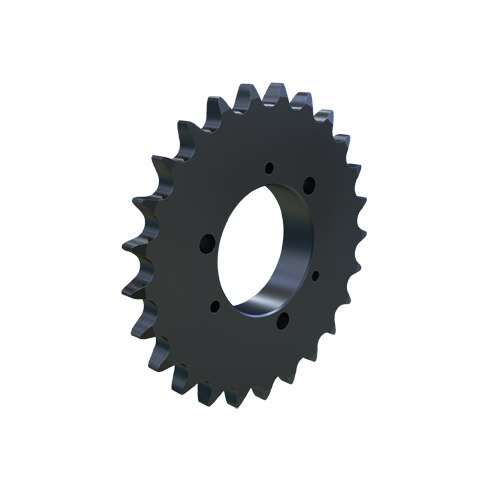

MARTIN SPROCKET 50SDS25 Sprocket, QD, 50 Chain, 25 Teeth, 4.987 Inch Pitch Dia., 5.322 Inch O.D., Steel
Get it by Tuesday, Jun 17
€125.17 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | SDS |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Solid |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 3 1/4" |
| Individually Packaged | Yes |
| Length Through Bore | 3/4" |
| Material | Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 25 |
| Outside Dia. | 5.322" |
| Pitch Dia. | 4.9867" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 13/16" |
| Storage Dimension Length | 5 9/16" |
| Storage Dimension Width | 5 9/16" |
| Ship weight (kg) | 0.84 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 13.51 |
| Ship width (cm) | 13.51 |
