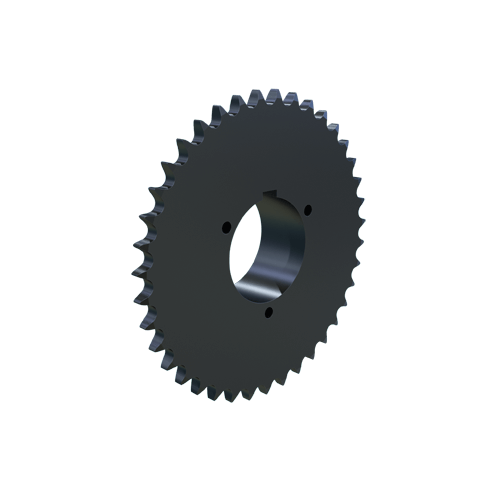

MARTIN SPROCKET 50Q39 Sprocket, 50 Chain, 39 Teeth, 7.767 Inch Pitch Dia., 8.117 Inch O.D., Steel
Get it by Wednesday, Jun 18
€223.96 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | Q1 |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Welded |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Keyway Size | 1/2" |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 39 |
| Outside Dia. | 8.117" |
| Pitch Dia. | 7.7672" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 8.117" |
| Storage Dimension Width | 8.117" |
| Weight | 6.4 lbs. |
| Ship weight (kg) | 3.05 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 20.62 |
| Ship width (cm) | 20.62 |
