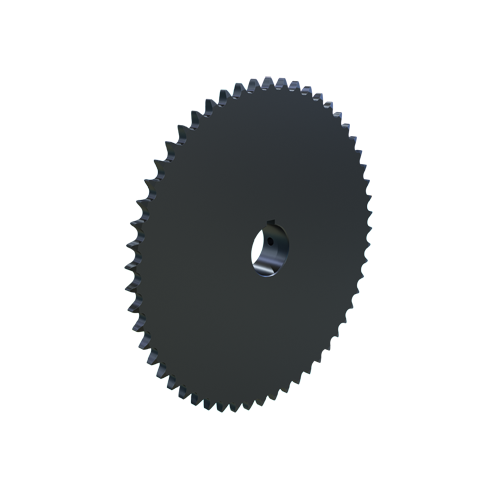

| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Construction | Welded |
| Finished Bore Size | 1 3/4" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 3 3/4" |
| Individually Packaged | No |
| Keyway Size | 3/8" x 3/16" |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 55 |
| Outside Dia. | 11.305" |
| Pitch Dia. | 10.9479" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/8"-16 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 11.305" |
| Storage Dimension Width | 11.305" |
| Weight | 10.93 lbs. |
| Ship weight (kg) | 4.92 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 28.73 |
| Ship width (cm) | 28.73 |
