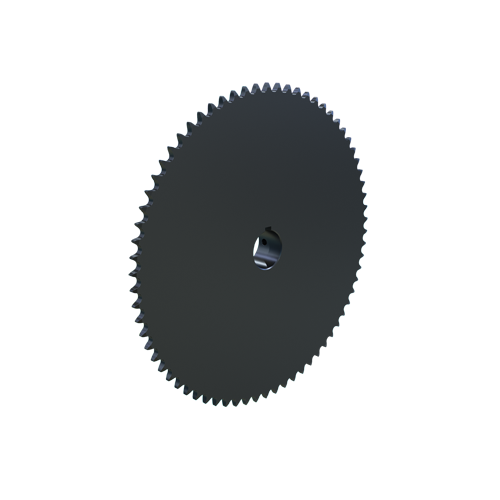

MARTIN SPROCKET 41BS70 1 3/8 Roller Chain Sprocket, Bore To Size, 1.375 Inch Bore, 11.433 Inch Outside Dia. Steel
Get it by Tuesday, Jun 17
€158.38 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 41 |
| Chain Pitch | 1/2" |
| Construction | Welded |
| Finished Bore Size | 1 3/8" |
| For Chain Number | 41 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Keyway Size | 5/16" x 5/32" |
| Length Through Bore | 1.188" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 70 |
| Outside Dia. | 11.433" |
| Pitch Dia. | 11.1446" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.227" |
| Storage Dimension Height | 1.19" |
| Storage Dimension Length | 11.433" |
| Storage Dimension Width | 11.433" |
| Weight | 8.79 lbs. |
| Ship weight (kg) | 3.96 |
| Ship height (cm) | 3.02 |
| Ship length (cm) | 29.03 |
| Ship width (cm) | 29.03 |
| Product | Model | Price | |
|---|---|---|---|
 |
41BS9 1/2 | €23.53 | |
 |
41BS10 1/2 | €24.69 | |
 |
41BS11 1/2 | €25.59 | |
 |
41BS12 1/2 | €27.21 | |
 |
41BS13 1/2 | €28.14 | |
 |
41BS14 1/2 | €29.76 | |
 |
41BS15 1/2 | €32.29 |
