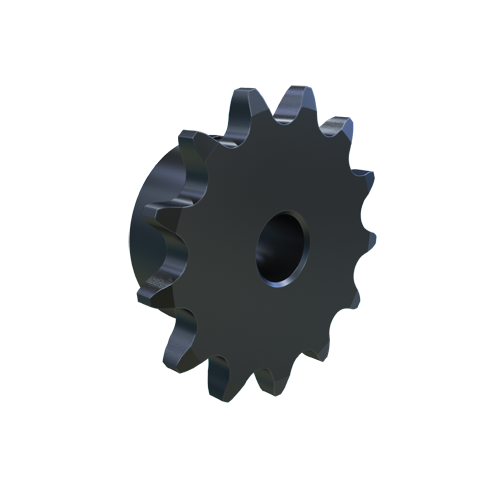

| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 41 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Finished Bore Size | 1/2" |
| For Chain Number | 41 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 1 9/16" |
| Individually Packaged | Yes |
| Length Through Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 13 |
| Outside Dia. | 2.329" |
| Pitch Dia. | 2.0893" |
| Set Screw Location | (2) 90° Apart (No Keyway) |
| Set Screw Size | #10-24 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.227" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 2 9/16" |
| Storage Dimension Width | 2 9/16" |
| Weight | 0.4 lbs. |
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 2.38 |
| Ship length (cm) | 5.92 |
| Ship width (cm) | 5.92 |
| Product | Model | Price | |
|---|---|---|---|
 |
41BS9 1/2 | €23.53 | |
 |
41BS10 1/2 | €24.69 | |
 |
41BS11 1/2 | €25.59 | |
 |
41BS12 1/2 | €27.21 | |
 |
41BS14 1/2 | €29.76 | |
 |
41BS15 1/2 | €32.29 | |
 |
41BS9 5/8 | €23.53 |
